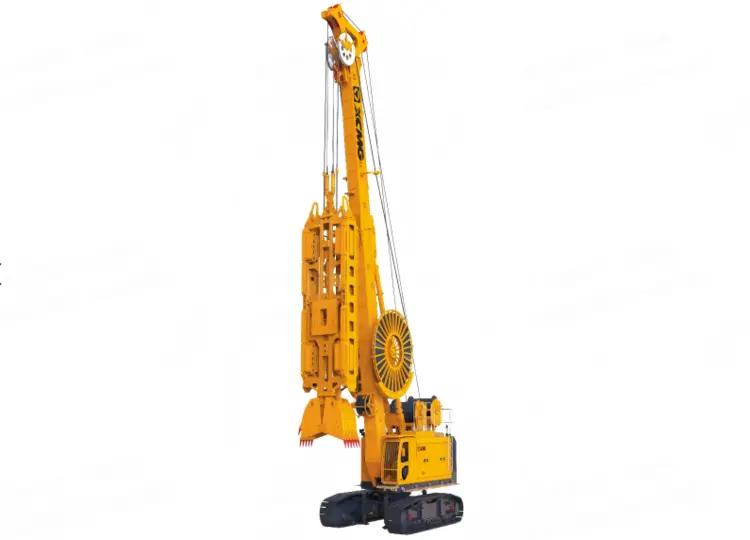

XG85 underground diaphragm wall hydraulic grab has a developed chassis width of 3,500-4,900mm, making it more stable in impact-grab operation. The power reserve of power system is sufficient to meet the needs of heavy-duty operations. The upper double winch with single-layer rope ensures large depth expansion space. The fully electronically controlled hydraulic system has sensitive action and fast response. The winch closed system realizes flow regeneration and saves more than 20% of oil. With high/medium/low three-gear control lowering technology, the maximum lowering speed can reach 80m/min, ensuring high efficiency in deep trench construction and strong impact-grab ability in hard formations. The independent cooling system with fan speed automatically adjusted with oil temperature provides good energy-saving effect. The high vertical plate main beam ensures small turning radius and has strong bearing capacity. The long guiding variable grab body has wide weight adjustable range. 7.5m low headroom configuration is optional for work in height restricted spaces.
Max.lifting force: 750 kN
Trenching depth: 85(Single-layer) m
Wire rope diameter: 36 mm
Winch lowering speed: 0-80 m/min
Working height: 18900 mm
Grab max ground clearance: 4500 mm
Working radius: 4600-5800 mm
Turning radius: 4450 mm
Weight (grab excluded): 100 ton
Trenching length: 2800 mm
Trenching width: 600-1500 mm
Cylinder closing force: 2000 kN
Grab weight: 28-36 ton
Model: Cummins-X12 /
Power: 345@2100 kW@RPM
Chassis Track retracted-extended width: 3500-4900 mm
Track length: 6575 mm
Track shoe width: 800 mm
