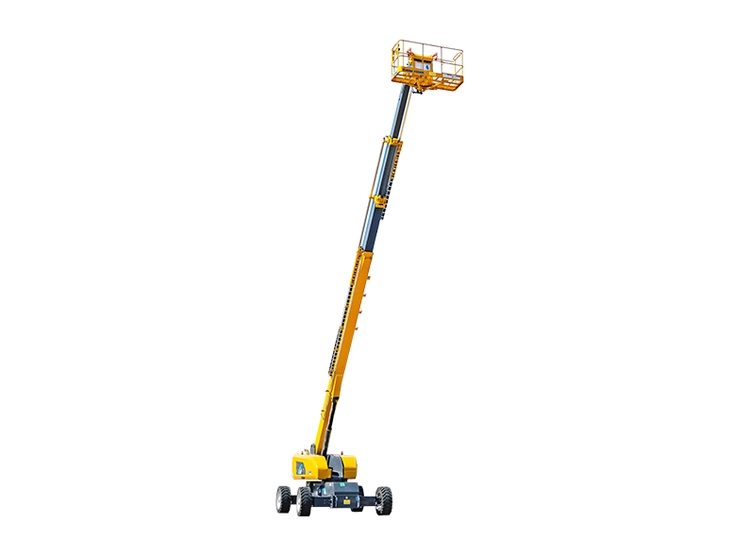

XCMG Global, XGS40K

Working Height: 40200 mm
Lift capacity: 300kg (unlimited)/460kg(limited) kg
Weight: 21460 kg
Overall dimension-Stowed: 14060x2490x3000 mm
Overall dimension-Transportation: 12500x2490x3000 mm
Dimension of working platform: 2400x900x1150 mm
Wheelbase: 3800 mm
Fly jib length: 2490mm/3800mm mm
Ground clearance: 300 mm
Max.Platform height: 38.2 m
Max.Working range: 24.9 m
Max.Occupants: 3
Max.Working slope: X-3°/ Y-3°
Telescopic boom luffing range: -6.5～+75°
Flying jib luffing range: -60°~+70°
Turntable rotation: 360°
Platform rotation: 160°
Drive speed: 5.0 km/h stowed
Drive speed: 0.5 km/h Up or extended
Min.Turning radius: 7700mm/10800mm(2-wheel) 4400mm/6800mm(4-wheel) inside/outside
Turntable tailswing: 2355mm/1700 mm stowed
Max.Gradeability: 40% (21°)
