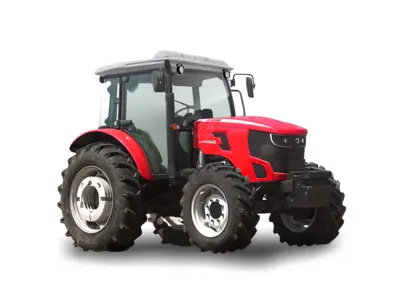

XCMG Global, XT804-5D
Have one to sell?
ConditionNew
New
(1) Engine torque reserve ﹥30%，To ensure more stable and stronger power ;(2) High end heavy- duty front axle with multiple sealings allows higher reliability ;(3) More comfortable operating experience: Professional 360° all weather visibility design, air suspension seat, delicate and clear operating feel, ultimate human-oriented operating experience ;(4) Large wheel ,high ground clearance, large traction and better possibility.
Engine Model: SC4H100.5G3
Engine Power: 55.8 kW
Engine Rated Speed: 2300 rpm
Air intake system / Fuel System: Turbo Charged
Gearbox: Dry double-acting clutch, 12F+12R synchronizer shifting
PTO Speed: 540/720 rpm
PTO Power: ≥51.5 kW
Traction: ≥23 kN
Hydraulic outlet valves No.: 2
Max Lifting Capacity: ≥23 kN
Tillage depth adjustment method: Strong uplift, strong drop
Wheelbase: 2260 mm
Min.Steering Radius: 5.9 m
3-Point Hitch Type: Category 2
Fuel Tank Capacity: 140 L
Front wheel track: 1625、1683 mm
Rear wheel track: 1630、1694 mm
Tyre Specifications: 12.4-24 R1/18.4-30 R111.2-28 R-1/16.9-34 R-111.2-24 PR-1/16.9-30 PR-112.4-26 PR-1/16.9-34 PR-1
Max Front Counterweight: 400 kg
Max Rear Counterweight: 400 kg
Min Machine weight: 3800 kg
Machine Dimensions: 4340*2094*2742 L*W*H
