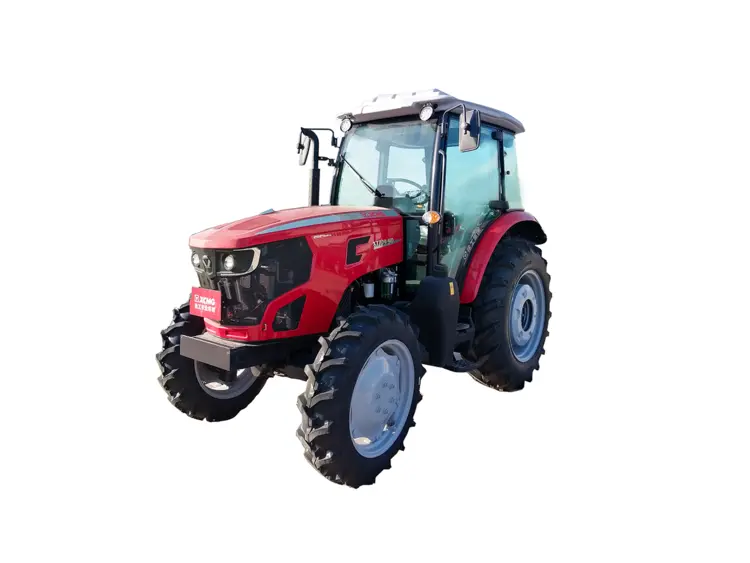

XCMG Global, XT704-4D
Have one to sell?
ConditionNew
New
(1) Engine torque reserve ﹥30%，To ensure more stable and stronger power ;(2) The classic synchronizer shift gearbox has an optimized speed range and enhanced durability, providing better efficiency and smoother gear shifting ;(3) The optimized machine barycenter design assures stable and efficient attcching for mutiple implements ;(4) The optimized machine barycenter design assures stable and efficient attaching for mutiple implements.
Engine Model: 4D32RT30P704
Engine Power: 51.5 kW
Engine Rated Speed: 2400 rpm
Air intake system / Fuel System: Turbo Charged
Gearbox: Dry double-acting clutch, 12F+12R synchronizer shifting
PTO Speed: 540/720 rpm
PTO Power: ≥43.7 kW
Traction: ≥20 kN
Hydraulic outlet valves No.: 2
Max Lifting Capacity: ≥14 kN
Tillage depth adjustment method: Force adjustment, position adjustment, force position comprehensive adjustment, strong rise and strong fall.
Wheelbase: 2075 mm
Min.Steering Radius: 3.8 m
3-Point Hitch Type: Category 2
Fuel Tank Capacity: 100 L
Front wheel track: 1373、1473、1583 mm
Rear wheel track: 1300、1414、1530 mm
Tyre Specifications: （Front wheel）8.3-24 R-1/8.3-24 PR-1/9.5-24 R-1/9.5-24 PR-1
（Rear wheel）11-32 R-1/11-32PR-1/14.9-30 R-1/14.9-30 RR-1
Max Front Counterweight: 208 kg
Max Rear Counterweight: 164 kg
Min Machine weight: 2800 kg
Machine Dimensions: 4070*1810*2540 L*W*H
