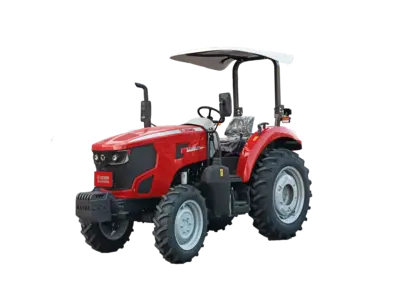

XCMG Global, XT504-3B
Have one to sell?
ConditionNew
New
(1) Engine torque reserve ﹥40%，To ensure more stable and stronger power ;(2) High standard design ensures safety and durability,High precision modeling control provides; Optimal in-cab flow field design enables lower energy cost but more comfortable operating experience ;(3) The classic synchronizer shift gearbox has an optimized speed range and enhanced durability, providing better efficiency and smoother gear shifting ;(4) The optimized machine barycenter design assures stable and efficient attaching for mutiple implements.
Engine Model: 4D32X41P504
Engine Power: 36.8 kW
Engine Rated Speed: 2400 rpm
Air intake system / Fuel System: Air intake system - Inhale naturally
Gearbox: Dry type double clutch, shuttle shift with 12F+12R speeds.
PTO Speed: 540/720 rpm
PTO Power: ≥31.28 kW
Traction: ≥17 kN
Hydraulic outlet valves No.: 2
Max Lifting Capacity: ≥10 kN
Tillage depth adjustment method: Strong uplift, strong drop
Wheelbase: 2000 mm
Min.Steering Radius: 4m m
3-Point Hitch Type: Category 1
Fuel Tank Capacity: 72 L
Front wheel track: 1200、1300 mm
Rear wheel track: 1200、1300 mm
Tyre Specifications: （Front wheel）8.30-20 R-1/7.50-16 R-1/7.5-16 PR-1
（Rear wheel）12.4-28 R-1/9.5-28 R-1/12.4-24 R-1/12.4/11-28 PR-1
Max Front Counterweight: 208 kg
Max Rear Counterweight: 156 kg
Min Machine weight: 2235 kg
Machine Dimensions: 3890*1640*2500 (up to safety rack) L*W*H
