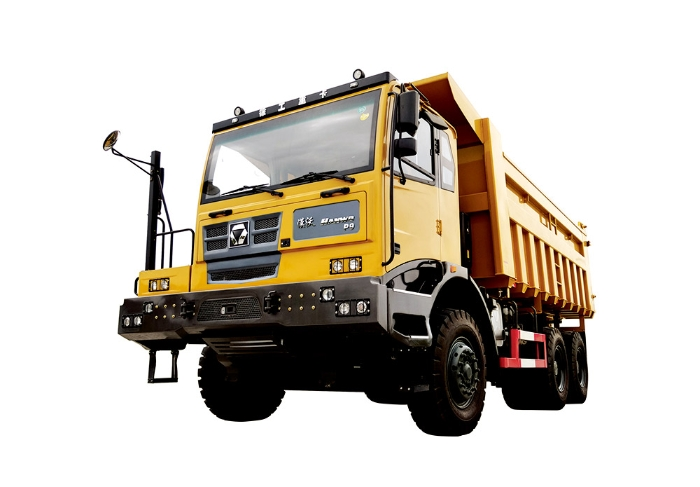

We have fully considered the customer demands and finalize the cnguration after thousands of high-strengh industrial assesments in diferent construction environments. Approved by national military field testing and TUV certification, the performance is highly adaptive to all complex working conditions that cannot be coped with by traditional dump truck. Our trucks are widely used for surface mining, water conservancy construction, short-distance transporation, removing mountains for filling seas or other construction projects.
Drive Type: 6×4
Kerb Mass: 32000 kg
GVW: 90000 kg
Max. Speed: 48 km/h
Min. Turning Diameter: 9.9 m
Grade Ability: ≥39%
Fuel Tank: 500 L
Dimension: 9045×3400×3972 mm
Wheelbase: 3800+1600 mm
Min. Clearance: 380 mm
Approach Angle: 36°
Departure Angle: 45°
Cargo size: 6000×3200×1600 mm
Cabin Model: K20
Left/Right Driving: RHD
AC: Optional
Person Allowed in: 1
Engine Model: WP12G460E310
Emission Standard: EUR III
Displacement: 11.596 L
Output Power: 338 KW
Max Torque Speed: 2000 N·m
Transmission Model: 8DS240A
PTO: QH70
Front Axle Model: 19T
Rear Axle Model: 35T
Main Reducer Ratio: 15.66
Rim: 10.00W-24
Tire: 14.00-25NHS
