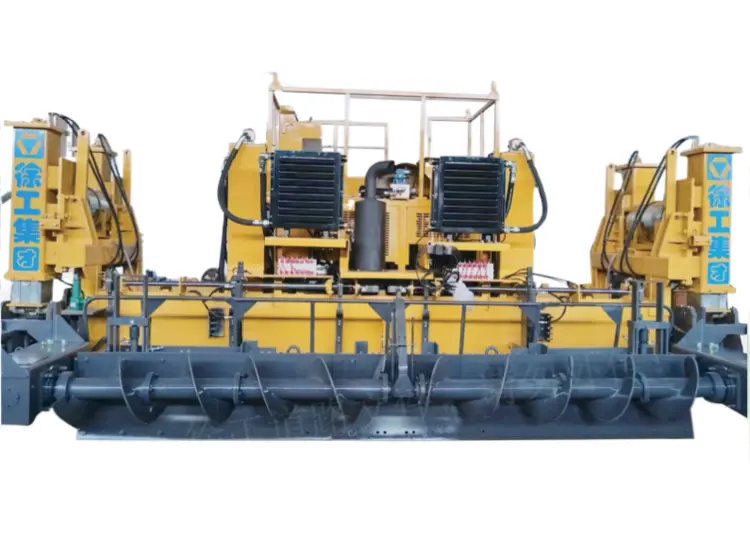

XLY9000 Slipform Paver is a special construction equipment for cement pavement independently developed by our company. It can meet the needs of high-speed development of highway construction, greatly improve the construction quality and speed of cement concrete structure, and can adapt to the construction of various roads.
Standard paving width: 4250 mm
Maximum paving width: 9000(Customizable 9750) mm
Paving thickness: 0~350(Customizable 420) mm
Paving speed: 0~10 m/min
Gradeability: 10 %
Vibration frequency: 0~167 Hz
Engine model: CUMMINS QSB6.7-C260-30
Rating power: 242 kW
Rating rotate speed: 2100 r/min
Screw rotate speed: 0~34 r/min
Overall weight: 33 t
Transportation dimensions: 4150×10400×2800 mm
