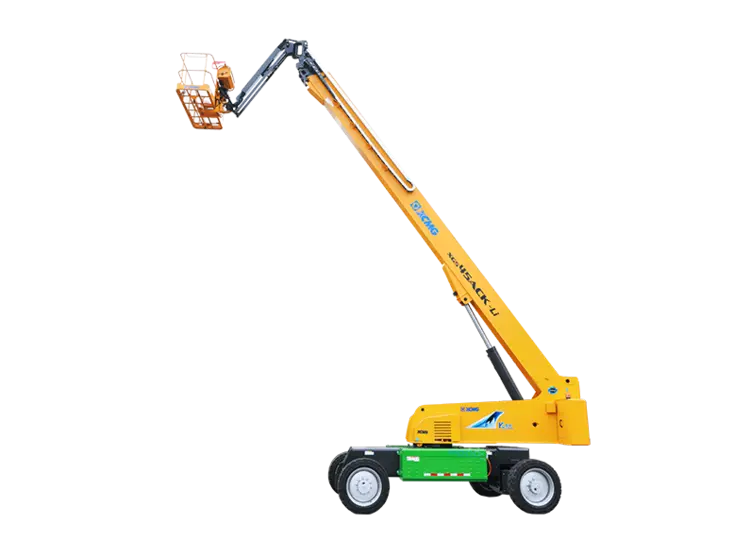

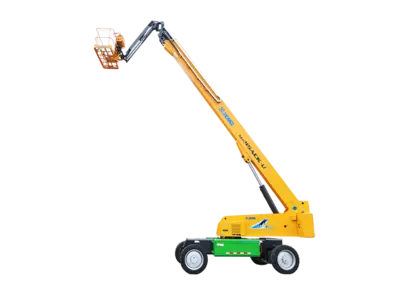

XGS45ACK-Li mobile elevating work platform is an innovative electric straight-arm self-propelled mobile elevating work platform with excellent performance, outstanding efficiency, powerful drive and easy operation. It has industry-leading load capacity and large working surface construction, with the leading working height and amplitude in the same meter class.
Working Height: 45100 mm
Lift capacity: 230(unlimited)/300(limited)/460(limited) kg
Weight: 20500 kg
Overall dimension-Stowed: 15500x2490/3800x3050 mm
Overall dimension-Transportation: 12600x2490/3800x3050 mm
Dimension of working platform: 2400x900x1150 mm
Wheelbase: 3800 mm
Fly jib length: 2440 mm
Ground clearance: 300 mm
Max.Platform height: 43.1 m
Max.Working range: 22.1 m
Max.Occupants: 2~3
Max.Working slope: X-3°/ Y-3°
Telescopic boom luffing range: -1°~ +75°
Flying jib luffing range: -60°~+70°
Turntable rotation: 360°
Platform rotation: 160°
Drive speed: 20500kg stowed
Drive speed: 5km/h Up or extended
Min.Turning radius: 0.5 km/h inside/outside
Turntable tailswing: 7700mm/10800mm(2-wheel)
4400mm/6800mm(4-wheel) stowed
Max.Gradeability: 5000mm/8000mm(2-wheel)
2400mm/5800mm(4-wheel)
