XCMG Global, XGS32ACK-Li
Have one to sell?
ConditionNew
New

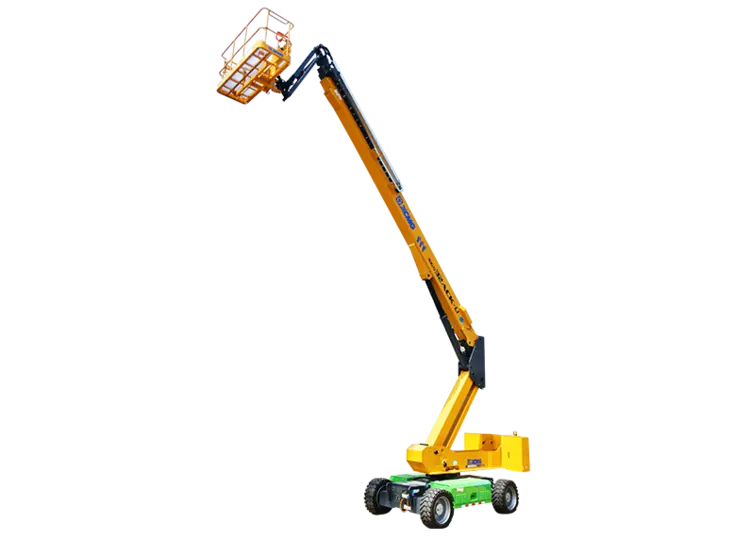

XGS32ACK-Li mobile elevating work platform is an innovative electric straight-arm self-propelled mobile elevating work platform with excellent performance, outstanding efficiency, powerful drive and easy operation. It has industry-leading load capacity, working height and amplitude to meet the needs of large load and large working surface construction.
Working Height: 32600 mm
Lift capacity: 300kg(unlimited)/460kg(limited) kg
Weight: 17900 kg
Overall dimension-Stowed: 12980x2490x2950 mm
Overall dimension-Transportation: 12980x2490x2950 mm
Dimension of working platform: 2400x900x1150 mm
Wheelbase: 3200 mm
Fly jib length: 1850 mm
Ground clearance: 320 mm
Max.Platform height: 30.6 m
Max.Working range: 20 m
Max.Occupants: 3
Max.Working slope: X-5°/ Y-5°
Telescopic boom luffing range: -4°~ +73°
Flying jib luffing range: -65°~ +70°
Turntable rotation: 360°
Platform rotation: 160°
Drive speed: 6km/h stowed
Drive speed: 0.6km/h Up or extended
Min.Turning radius: 4600mm/6500mm inside/outside
Turntable tailswing: 1930 mm stowed
Max.Gradeability: 45% (24°)
