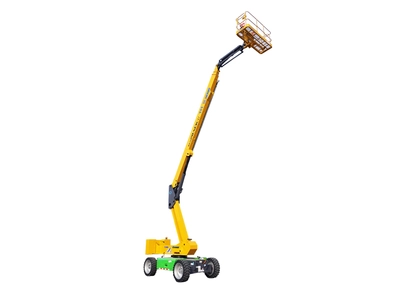

XGS28ACK(II)-Li mobile elevating work platform is an innovative electric straight-arm self-propelled mobile elevating work platform with excellent performance, outstanding efficiency, powerful drive and easy operation. It has industry-leading load capacity, working height and amplitude to meet the needs of large load and large working surface construction.
Working Height: 27900 mm
Lift capacity: 300kg(unlimited)/460kg(limited) kg
Weight: 12700 kg
Overall dimension-Stowed: 10850x2450x2830 mm
Overall dimension-Transportation: 10590x2450x3000 mm
Dimension of working platform: 2440x910x1150 mm
Wheelbase: 3000 mm
Fly jib length: 1850 mm
Ground clearance: 300 mm
Max.Platform height: 25.9 m
Max.Working range: 22 m
Max.Occupants: 3
Max.Working slope: X-5°/ Y-5°
Telescopic boom luffing range: -4°~ +75°
Flying jib luffing range: -65~+70°
Turntable rotation: 360°
Platform rotation: 160°
Drive speed: 5km/h stowed
Drive speed: 0.6 km/h Up or extended
Min.Turning radius: 3155mm/6360mm inside/outside
Turntable tailswing: 1810mm stowed
Max.Gradeability: 40% (22°)
