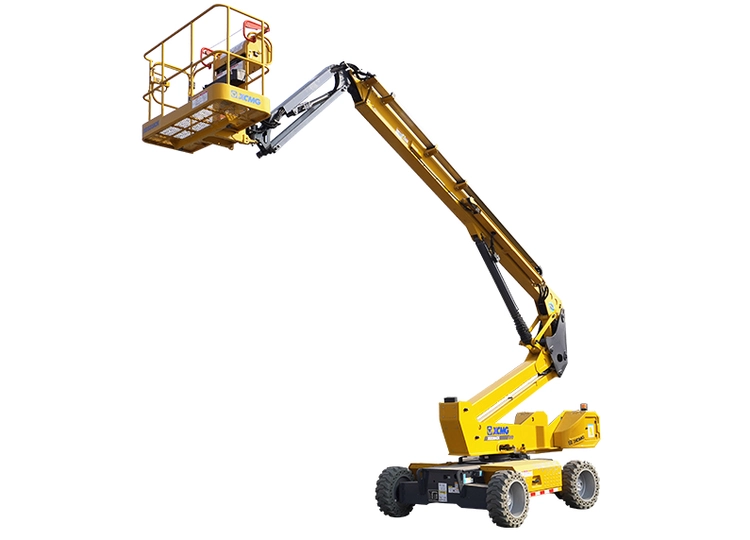

XGS20ACK&XGS20ACK-LI mobile elevating work platform is equipped with non-marking off-road tires and axle balancing system as standard, which is applicable to all kinds of outdoor road conditions; Green environmental protection, zero emission, low noise, non-marking driving, which is applicable to indoor construction work in a clean environment.
Working Height: 20500 mm
Lift capacity: 300 kg (unlimited) kg
Weight: 8350 kg
Overall dimension-Stowed: 9800x2490x2640 mm
Overall dimension-Transportation: 7400x2270x3000 mm
Dimension of working platform: 1830x760x1150 mm
Wheelbase: 2500 mm
Fly jib length: 1850 mm
Ground clearance: 300 mm
Max.Platform height: 18.5 m
Max.Working range: 13.2 m
Max.Occupants: 2
Max.Working slope: X-5°/Y-5°
Telescopic boom luffing range: -5~+76°
Flying jib luffing range: -65~+70°
Turntable rotation: 360°
Platform rotation: 160°
Drive speed: 4.8km/h stowed
Drive speed: 0.6 km/h Up or extended
Min.Turning radius: 3100mm/5000mm inside/outside
Turntable tailswing: 1630mm stowed
Max.Gradeability: 45% (24°)
