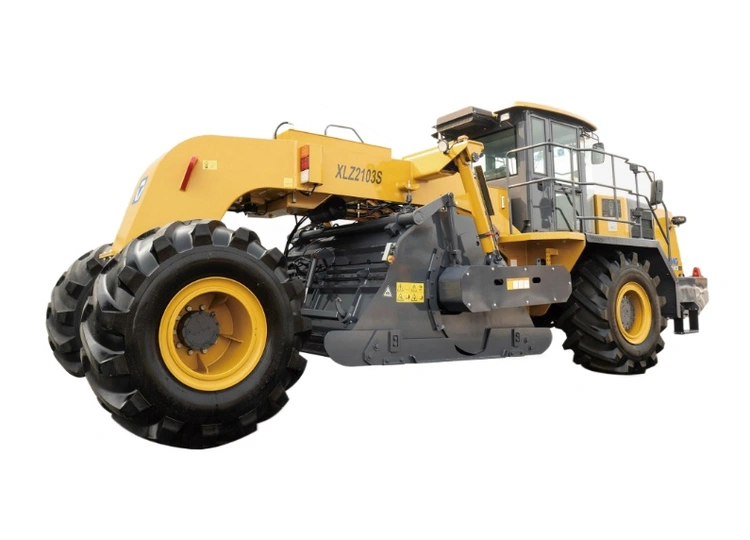

XCMG Global, XLZ2103S
Have one to sell?
ConditionNew
New
XLZ2103S cold recycler is a kind of multi-functional pavement maintenance equipment, which is mainly used forthe in-place mixing of stabilized soil of base course and subgrade course in the highways, urban roads, squares, wharfs and parking lots etc. It is suitable for mixing the filler, cement and lime etc. with the natural soil to improve the mechanical and physical properties of the soil; for cold-recycling the base course in the upgrading and modification engineering of the existing asphalt pavement ofrural roads; and for milling the damaged asphalt pavementwhich is less than 150mm thick.
Milling width: 2100 mm
Miling depth: 0-400 mm
Space between tools: 18 mm
Quantity of tools: 144 Piece
Diameter of milling wheel: 1380 mm
Manufacturer: WEICHAI POWER CO.. LTD /
Cooling mode: Water-cooling + air-air inter-cooling /
Model: WP12G480E310 /
Number of cylinders: 6 /
Rated power: 353 kW
Engine speed: 1900 rpm
Fuel consumption: Full load: 70 kg/h
Working speed: 0-3.2 km/h
Traveling speed: 0-23 km/h
Theoretical gradeability（working gear）: 20 %
Ground clearance: 350 mm
Front axle load: 15000 kg
Rear axle load: 6000 kg
Shipping weight: 21000 kg
Working weight: 21000 kg
Diesel tank: 650 L
Hydraulic oil tank: 300 L
Water tank: 200 L
Electric system: 24 V
Machine（LxWxH）: 9230×3160×3450 mm
