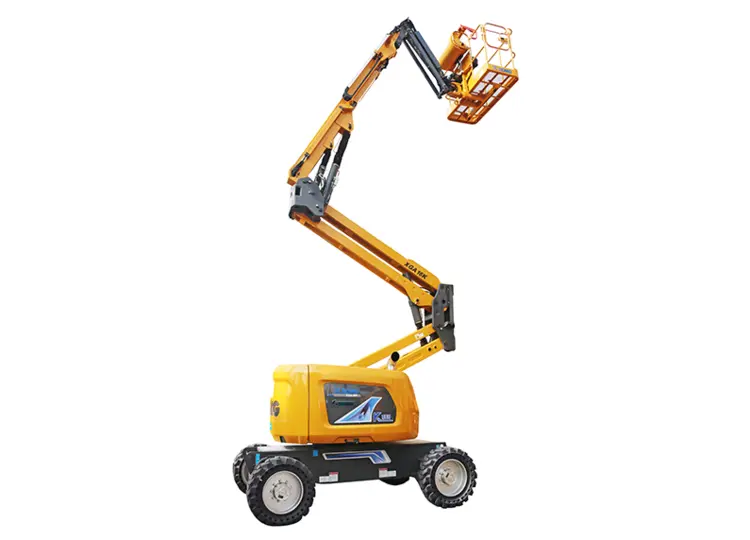

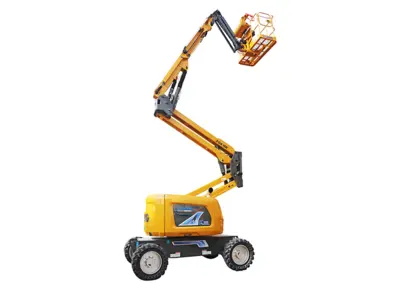

16m (52 ft 6 in) level“ Σ” The Y-shaped linkage folding hybrid arm frame aerial work platform is a compact layout, efficient obstacle crossing, precise design, strong driving, and easy operation curved arm aerial work platform. This model is easy to operate, safe and reliable, precise and efficient, and can widely meet the needs of users in various industries such as construction, steel structures, petrochemicals, venues, and leasing.
Working Height: 16630 mm
Lift capacity: 256(unlimited)/350(limited) kg
Weight: 7600 kg
Overall dimension-Stowed: 6850x2320x2380 mm
Overall dimension-Transportation: 5600x2320x2650 mm
Dimension of working platform: 1830x760x1150 mm
Wheelbase: 2360 mm
Fly jib length: 1420 mm
Ground clearance: 300 mm
Max.Platform height: 14.63 m
Max.Working range: 8.82 m
Max.up and over clearance: 7.7 m
Max.Occupants: 2/3
Max.Working slope: X-5°/Y-5° °
1st Boom luffing range: 0°~65° °
2nd Boom luffing range: -11°~75° °
Flying jib luffing range: -65°~70° °
Turntable rotation: 355° °
Platform rotation: 160° °
Drive speed: 5.5 stowed
Drive speed: 0.6 Up or extended
Min.Turning radius: 3200/4700 inside/outside
Turntable tailswing: 0 stowed
Max.Gradeability: 0.45 %
