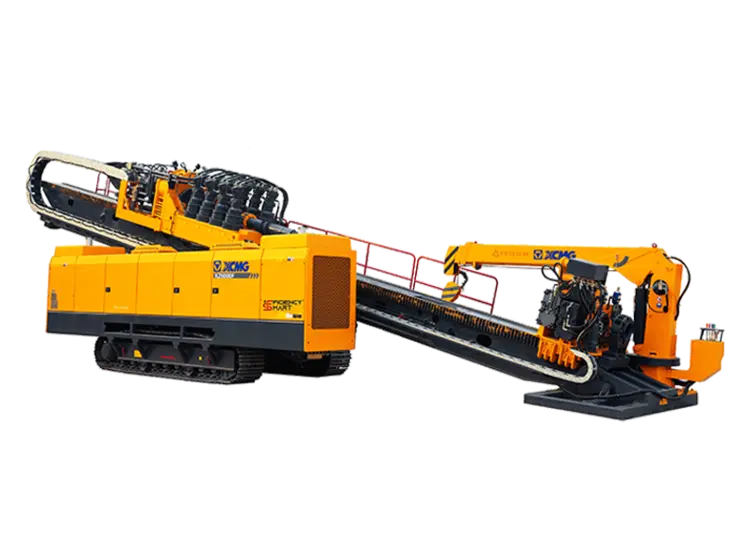

XCMG Global, XZ6000F
Have one to sell?
ConditionNew
New
The large tonnage horizontal directional drilling rig is mainly used in large-scale projects such as national oil and natural gas. The drilling rig has a high degree of intelligence, adopts multiple power systems, multiple international leading technologies, and is safe and reliable to use. It has a modular operation room and a split type power station.
Max. Thrust-pull Force: 6000 kN
Max. Torque: 160000 N·m
Engine Power: 2×354 kW
Engine Model: Cummins
QSZ13
Emission standard: CN III
Max. Thrust-pull Speed: 35 m/min
Max. Rotation Speed: 90 r/min
Max. Mud Flow: External L/min
Drill Pipe: ∅168/140×9.6 mm×m
Max. Entry Angle: 16 °
Max. Reaming Dia.: ∅1800 mm
Weight: 59 t
Dimension: 20000×3400×3770 L×W×H
