Enhance Your Concrete Production with the Versatile Blend Plants E050

Description

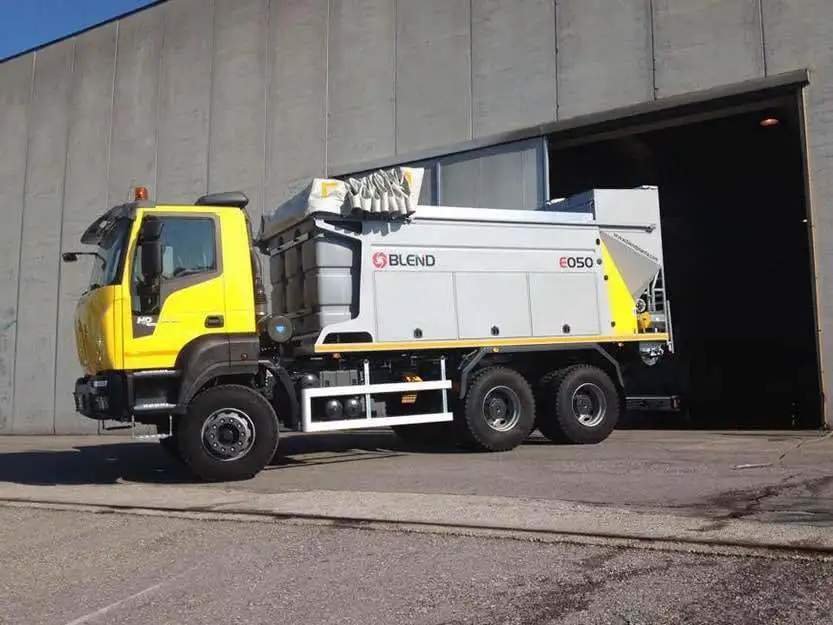

Similar to a volumetric truck like a cementec but not volumetric, batch system like a regular plant, prints tickets, no monthly or yearly subscription fees for batch software, 5g Active for diagnose/troubleshooting, 50cy/hr. Can be truck mounted or standalone with diesel motor.

Diesel Engine: The plant is powered by a water-cooled 4-cylinder diesel engine with a capacity of 37 kW. It includes an automatic accelerator and a variable displacement pump.
Hydraulic System: The hydraulic system comprises a hydraulic oil tank with filters, electric proportional valves, and a cooler with a thermostat and electric fan. This system ensures smooth operation and temperature control.
Main Frame: The machine features a robust main frame that is 2250 mm wide. It includes an aggregate hopper with a capacity of 9/10 m3 for storing the aggregates used in concrete production.
Extracting Belt: There is a 750 mm wide extracting belt that facilitates the transfer of aggregates from the hopper. It includes a rotation sensor, presence of aggregates sensor, side containing plates, reduction gearbox, and a hydraulic engine.
Water System: The plant is equipped with a 2000-liter polyethylene water tank, complete with a level indicator and a tap for easy filling. It also includes a centrifugal pump with a flow rate of 10-180 liters per minute, a flowmeter, and a washing hose.
Cement Silo: The machine features a cement silo with a capacity of 3.2 m3. It has an extracting screw with a variable pitch, which is hydraulically motored and can handle a flow rate of 30-200 kg/min. The silo is equipped with load cells to measure loss-in-weight accurately.
Inboard Electronic System: The plant is entirely managed by an inboard electronic system. This system allows the selection and storage of up to 40 different product recipes. It also enables the downloading of production data through a USB port for analysis and monitoring.
Horizontal Continuous Mixer: A horizontal continuous mixer with a length of 2100 mm is included in the plant. This mixer ensures efficient and consistent mixing of concrete ingredients.
Quick Release Mixer Belt: The mixer's belt has a quick-release mechanism, making it easy to clean and maintain the mixer.
Belt Conveyor for Concrete Discharge: The plant is equipped with a belt conveyor for discharging the mixed concrete. It offers manual horizontal swiveling, piston-driven vertical movement, with a maximum length of 3000 mm and an action radius of 155°.
Optional Features:

Aggregate Hopper with Double Belt (Option 17): This optional feature includes a central separation of the aggregate hopper with two independent belts. The belts are automatically operated from the control panel to precisely dose the materials flow. It also includes two vibrators for efficient material flow.
Automatic Greasing System (Option 34): This option provides a controller to automatically grease the bearings of the machine. The greasing system is set up and controlled from the main control panel.
Radio Remote Control (Option 35): The radio remote control option allows for remote operation of the plant. It includes functions to move the conveyor belt and control its speed, turn on/off the production process, control the water supply, and emergency stop functionality. The remote control comes with two batteries, a battery charger, and an emergency button for added safety.
These components and optional features make the DOE A Blend Plant E050 a versatile and efficient machine for concrete production, offering precise dosing, easy operation, and convenient maintenance.

For more information about the Blend Plant E050, please contact Garret at 716-353-3676. Garret will be able to provide you with further details and answer any specific questions you may have.
