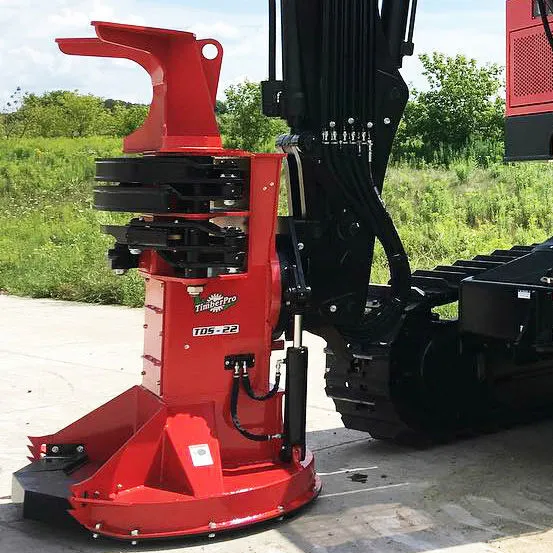

TIMBER PRO TDS-22
Have one to sell?
ConditionNew
New
Our 32" Bar Saw and 22" Disc Saw Felling Heads are a High production, Lightweight, Low Cost solution for your TimberPro Feller Buncher. Both models are available in a fixed mount, 40 degree Tilt or 360 degree wrist design.
• 40° Lateral Tilt Adapter (Optional 360°)
• Constructed from Grade 100 Material
• 6500 lbs (with 40-deg tilt adapter)
• 22" plus (56 cm) Cutting Capacity
• 4.0 sqft Accumulation Area
• Quadtooth® Bolt-on Holders
► 40° Lateral Tilt Adapter (Standard)
► 360° Rotate (Optional)
► Frame Constructed from Grade 100 Material
► 3/4” T1 Grade Butt Plate
► Quadtooth® Bolt-on Holders
► 22" plus (56 cm) Cutting Capacity
Operating Weight
(with 40-deg rotator) 6500 lbs (2,948 kg)
(with 360-deg rotator) 7400 lbs (3,357 kg)
Dimensions
Height 92”
Width 55”
Depth 62”
Max Throat Opening 30”
Accumulation Area 4.0 sq ft
Saw Information
Tip to Tip diameter 52”
Saw RPM 1,150
Number of Teeth 20
Saw Kerf 2”
