Blend BPS-120-100 Battery Power Supply
Have one to sell?
ConditionNew
New

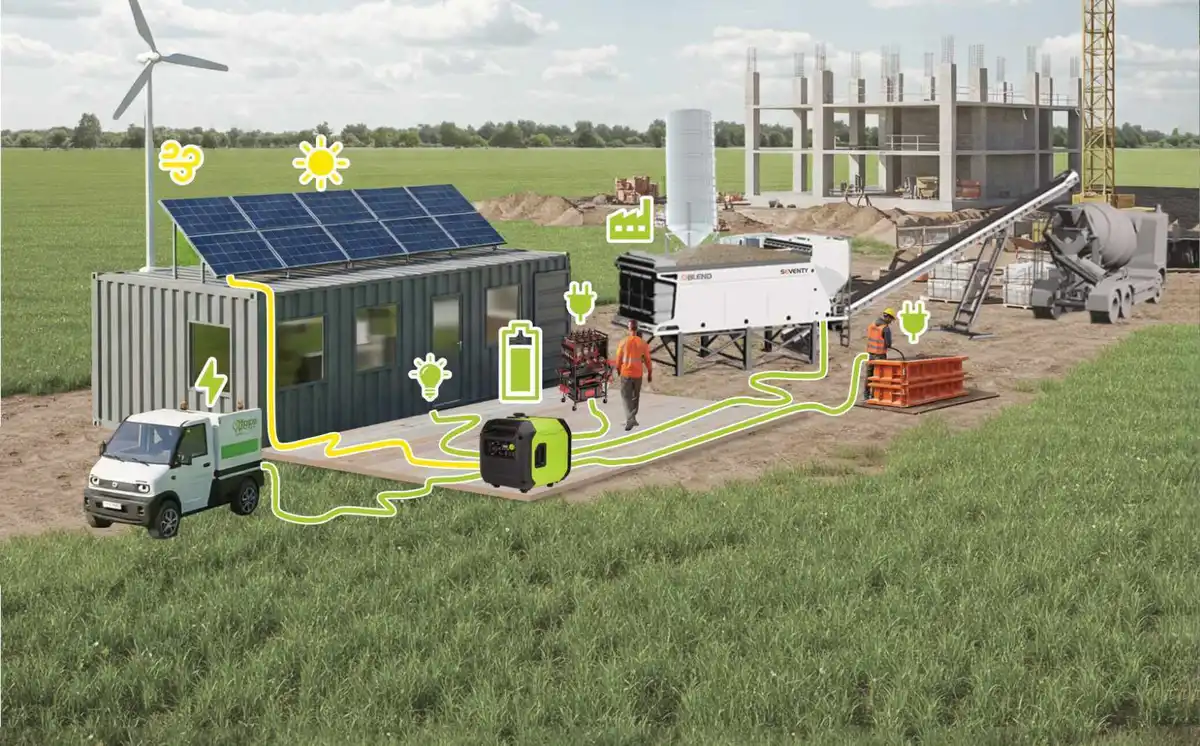

BPS is the new power supply system by Blend Plants: a modular, powerful, and flexible solution designed to deliver energy wherever it’s needed. With the ability to recharge via both the electrical grid and renewable sources, BPS is a cutting-edge choice for those seeking efficiency, sustainability, and reliability to support their Blend Plants equipment.
Equipped with advanced lithium-ion or lithium iron phosphate (LiFePO4) battery systems, BPS is engineered to ensure high performance even under the most demanding operating conditions. It is ideal for use on construction sites, in mines, and in industrial environments where high power and continuous operation are essential.
Available in various power configurations and with a wide range of output options, BPS easily adapts to a broad spectrum of applications, delivering reliable energy even for the most demanding needs.
LITHIUM IRON PHOSPHATE BATTERY
Weight .......... 2400 kg
Dimension ....... 1350X950X1100 mm
Wi-Fi ........... Optional
SIM ............. Optional
Bluetooth ....... Optional
Certifications .. CE, EMC, UN 38.3
Temperature ..... _-5°C – 45°C
Input ........... 400 Vac, 50 Hz, 125 A – 3P+N+T
Input ........... MPPT (Optional)
Output 1 ........ 230 Vac, 50 Hz, 16 A (3 kW) 1P+N+T x3
Output 2 ........ 400 Vac, 50 Hz, 32 A (20 kW) 3P+N+T x2
Output 3 ........ 400 Vac, 50 Hz, 63 A (40 kW) 3P+N+T x2
Output 4 ........ EV – Tipo 1 (Optional)
Max power ....... 120 kW
Capacity ........ 120 kWh
Cycles .......... 2500-4000 @ 1C, 20% SOC
