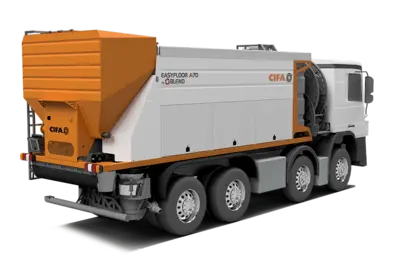

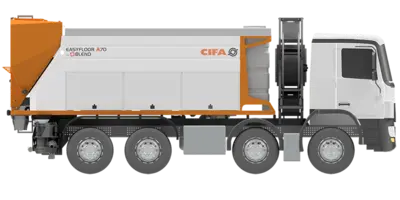

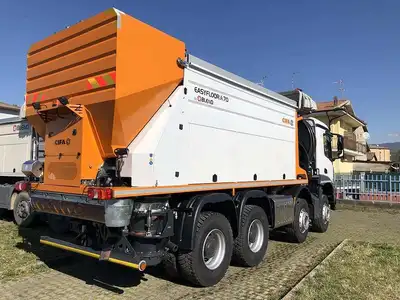

Blend EASYFLOOR A70 AIR PUMP - A SINGLE SOLUTION FOR FLOORING.
Have one to sell?
ConditionNew
New
CIFA AND BLEND TOGETHER. A SINGLE SOLUTION FOR FLOORING.

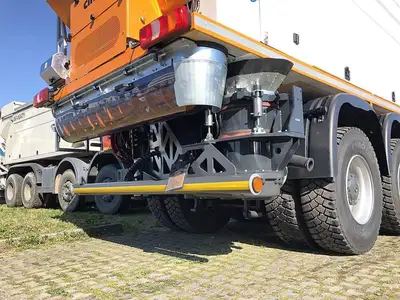

CIFA and Blend join their know how in a new product: Easyfloor. Born as a mobile flooring system and equipped with a pumping unit available in two versions: piston and air. The air pump unit is mounted on a 4-axis chassis and has an output of up to 10.5 yd3/h at an air pressure of 6 bar. This plant is unique as it produces traditional screeds, semi-wet screed, self-levelling screed, shotcrete (both dry and wet), and concrete. It ensures continuous operation and the utmost precision, also thanks to the pumping unit which guarantees smooth pumping, a pipeline with no “kicking”.
Total required power ............. 75 Kw PTO
Pumpimg .......................... 4 ÷ 10 yd3/h
Max pressure ..................... 6 bar
Cycle per minute .................. –
Conc. cylinders (diam. x stroke) .. –
Aggregates ........................ ~18 yd3
Cement ............................ 4.5 yd3
Water ............................. 530 gal
Additive .......................... 2×11 gal
Tube winder ....................... 197 ft
Pumping height* ................... 328 ft
Pumping distance* ................. 590 ft
Equipment weight .................. ~9 500 lb
Dimensions ........................ 20 x 7.4 x 7.5 ft
Max grain size .................... 0.5 inch
Consistency ....................... dry, semi-dry, wet
* Indicative data, subject to variations.
