350 Barrel Basic Cement Silo

Description

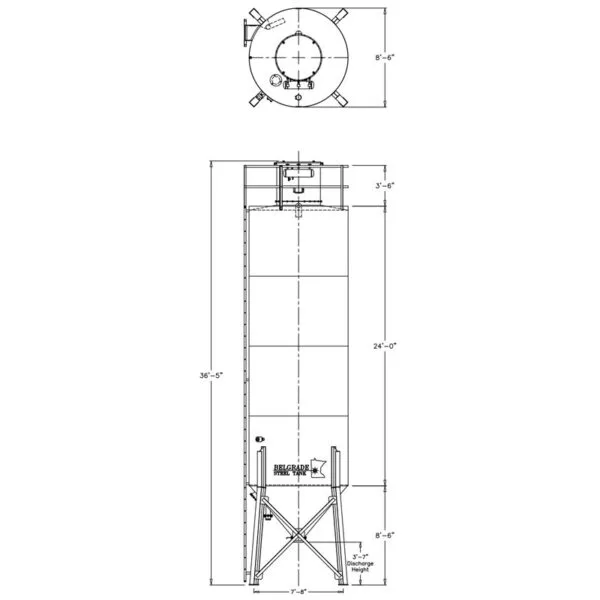

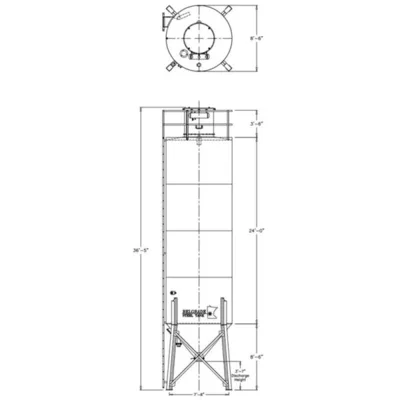

8’-6” Diameter x 36’-5” Overall Height
330 Sq. Ft. Pulse Jet Dust Collector
Pressure Relief Valve
3’-8” Clearance Under Discharge
Outside Ladder with OSHA Compliant Fall Arrest Cable System
4” Fill Pipe with Aluminum Adapter
20” Non-Pressurized Inspection Manhole
Solimar Disc Package
10” Emergency Jam Gate
Sandblast, Prime, and Paint
Standard Colors:
RAL 7038 Gray, RAL 9010 White, RAL 1001 Tan, RAL 1032 Yellow
Options
150 Sq. Ft. Bag Area Dust Collector with Air Vibrator
Bin Level Indicators
Manual Air Valve Controls
10” or 12” Butterfly Valve
5” Fill Pipe
12” Emergency Jam Gate
