850 Barrel Split Cement Silo

Description

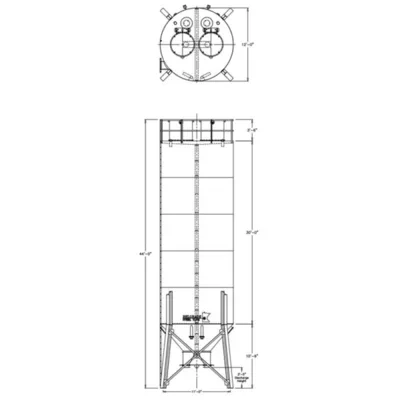

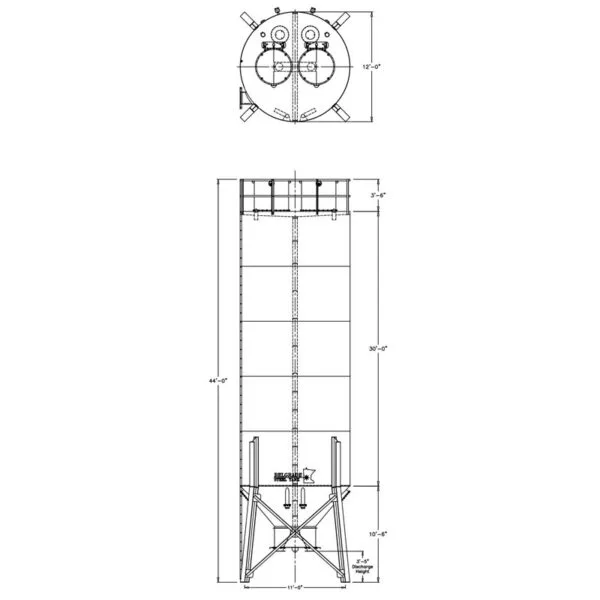

12’-0” Diameter x 44’-0” Overall Height
(2) 330 Sq. Ft. Pulse Jet Dust Collectors
(2) Pressure Relief Valves
3’-6” Clearance Under Discharge
Outside Ladder with OSHA Compliant Fall Arrest Cable System
(2) 4” Fill Pipes with Aluminum Adapters
(2) 20” Non-Pressurized Inspection Manholes (High Level)
(2) 20” Non-Pressurized Inspection Manholes (Low Level)
(2) Solimar Disc Package
(2) 10”Emergency Jam Gates
Sandblast, Prime, and Paint
Standard Colors:
RAL 7038 Gray, RAL 9010 White, RAL 1001 Tan, RAL 1032 Yellow

Options
150 Sq. Ft. Bag Area Dust Collector with Air Vibrator
Bin Level Indicators
Manual Air Valve Controls
10” or 12” Butterfly Valve
5” Fill Pipe
33/66 or 50/50 Split Design
2’-0” or 3’-6” Discharge Center
12” Emergency Jam Gate
