500 Barrel Round Portable Split Silo

Description

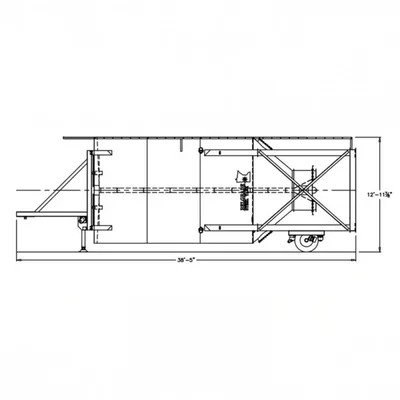

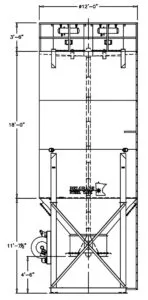

12’-0” Diameter x 38’-5” Overall Length
Heavy Duty Dual Axle Trailer and Tires
Air Brakes and Lights Package
(2) 330 Sq. Ft. Pulse Jet Dust Collector
(2) Pressure Relief Valves
Two Speed Trailer Jack Set
4’-6” Clearance under Discharge
Outside Ladder with OSHA Compliant Fall Arrest Cable System
(2) 4” Fill Pipes with Aluminum Adapters
(2) 20” Non-Pressurized Inspection Manholes (High Level)
(2) 20” Non-Pressurized Inspection Manholes (Low Level)
Solimar Disc Package
Sandblast, Prime, and Paint
Standard Colors:

RAL 7038 Gray, RAL 9010 White,
RAL 1001 Tan, RAL 1032 Yellow
RAL 7038 Gray, RAL 9010 White,
RAL 1001 Tan, RAL 1032 Yellow

Options
150 Sq. Ft. Dust Collector
Bin Level Indicators
Manual Air Valve Controls
5” Fill Pipes
