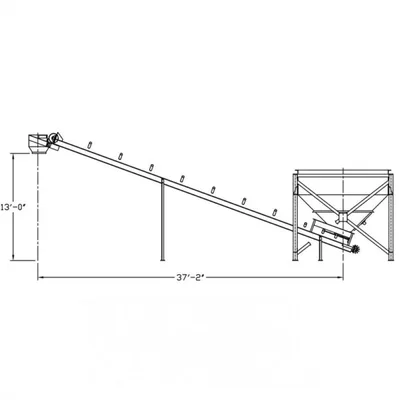

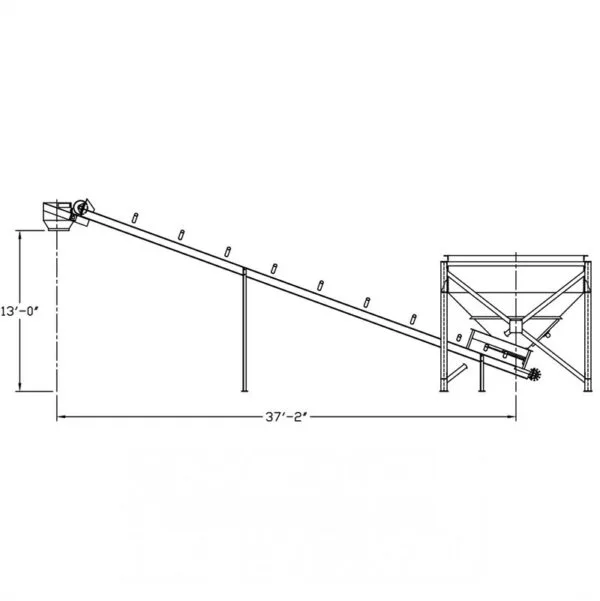

30″ x 38-6″ Belt Conveyor

Description

300 FPM / 576 TPH
8” Channel Frame 20-degree and 35-degree Trough Idlers and Returns
30” Wide 3/16 x 1/16 2-ply belt
14” Head Pulley with Herring-bone Lagging on 2 – 7/16” Drive Shaft and Pillow Block Bearings
Individual Belt Tighteners with 3/4” Sealed in Grease Threaded Rods
10 HP 3-Phase Motor T.E.F.C.
Shaft Mount Direct Drive Gear Box with Backstop
Discharge Hopper with Rubberized Sock
Torsion Style Belt Wiper
Water Pipe
Intermediate Support Stand
Sandblast, Prime, and Paint
Standard Colors: RAL 7038 Gray, RAL 9010 White, RAL 1001 Tan, RAL 1032 Yellow

Options
Water Meter
Motor Starter Package
