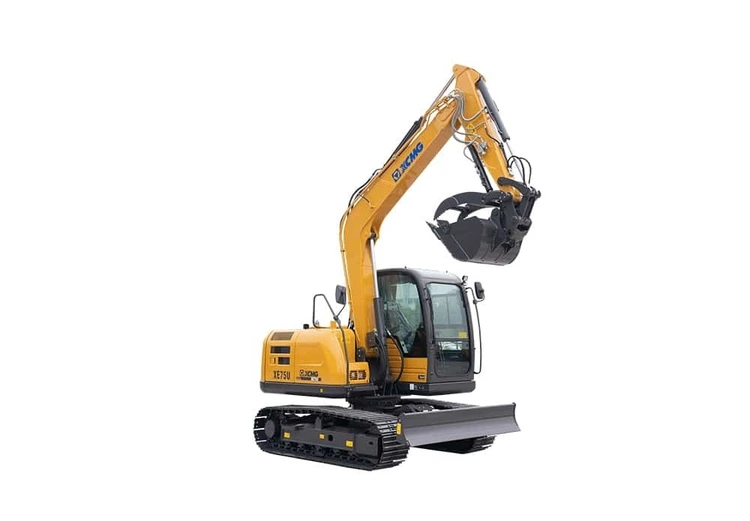

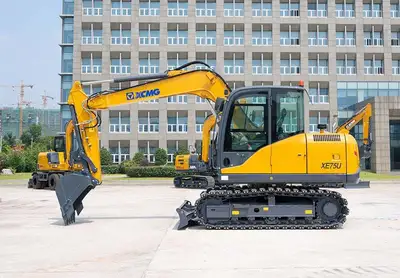

🚧 XCMG XE75U Compact Excavator — KUBOTA Tier 4 Power + Load-Sensing Hydraulics (7.5 Ton Class) 🚧
If you want a compact excavator that feels like a true production machine (not a light-duty mini), the XCMG XE75U delivers. You get trusted KUBOTA Tier 4 diesel power, strong load-sensing hydraulics for smooth multi-functioning, serious digging force, and a stable undercarriage ready for daily trenching, utilities, site prep, landscaping, drainage, and attachment work.
✅ TOP SPECS (QUICK HITTERS)
• Rated Power: 60.3 hp
• Operating Weight: 17,328 lb
• Standard Bucket Capacity: 0.43 yd³

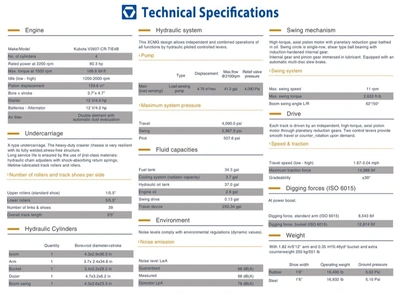

✅ ENGINE — KUBOTA POWER (Tier 4)
• Make/Model: Kubota V2607-CR-TIE4B
• Cylinders: 4
• Rated Power: 60.3 hp @ 2200 rpm
• Max Torque: 166.6 lbf·ft @ 1500 rpm
• Idle: 1200–2000 rpm
• Displacement: 159.6 in³
• Bore x Stroke: 3.7" x 4.7"
• Starter: 12V / 4.0 hp
• Air Filter: double element with automatic dust evacuation
✅ HYDRAULICS — LOAD-SENSING / SMOOTH MULTI-FUNCTION
(Designed for independent + combined operation of all functions using hydraulic pilot-controlled levers)
• Main Pump: load sensing, variable displacement
• Pump Displacement: 4.76 in³/rev
• Max Flow @ 2100 rpm: 41.2 gpm
• Relief Valve Pressure: 4,090 psi
Maximum system pressure (at power boost):
• Travel: 4,090.0 psi
• Swing: 2,987.8 psi
• Pilot: 507.6 psi
Hydraulic cylinders (qty / bore x rod x stroke):
• Boom: 1 — 4.3 x 2.9 x 36.3 in
• Arm: 1 — 3.7 x 2.4 x 34.8 in
• Bucket: 1 — 3.4 x 2.2 x 29.2 in
• Dozer: 1 — 4.7 x 3.2 x 6.2 in
• Boom swing: 1 — 4.3 x 2.6 x 23.3 in
✅ DIGGING / PERFORMANCE (ISO 6015)
• Digging Force (standard arm): 8,543 lbf
• Digging Force (bucket): 12,814 lbf
Travel & traction:
• Travel Speed (low–high): 1.67–3.04 mph
• Maximum Traction Force: 14,388 lbf
• Gradeability: ≤30°
✅ SWING SYSTEM (BUILT LIKE A BIG MACHINE)
High-torque axial piston motor with planetary reduction gear (oil bath). Single-row shear-type ball bearing swing circle with induction-hardened internal gear. Internal gear and pinion gear immersed in lubricant. Automatic multi-disc slew brake.
• Max Swing Speed: 11 rpm
• Max Swing Torque: 2,633 ft·lb
• Boom Swing Angle (L/R): 62° / 50°
✅ UNDERCARRIAGE — HEAVY DUTY X-TYPE
• X-type undercarriage with fully welded, stress-free structure
• Hydraulic chain adjusters with shock-absorbing return springs
• Lifetime-lubricated track rollers and idlers
• Each track driven by independent high-torque axial piston motor through planetary reduction gears
• Smooth travel + counter-rotation via dual control levers
Rollers / track details (per side):
• Upper rollers: 1
• Lower rollers: 5
• Number of links & shoes: 39
• Overall track length: 9'5"
✅ WEIGHTS / TRACK OPTIONS / GROUND PRESSURE
(Listed with 1.82 m / 5'12" arm + 0.35 m³ / 0.46 yd³ bucket + extra counterweight 250 kg / 551 lb)
• Rubber tracks: 16,490 lb | 5.02 psi | shoe width 1'6"
• Steel tracks: 16,932 lb | 5.10 psi | shoe width 1'6"
✅ FLUID CAPACITIES
• Fuel Tank: 34.3 gal
• Cooling System (radiator): 3.7 gal
• Hydraulic Oil Tank: 37.0 gal
• Engine Oil: 2.6 gal
• Swing Drive: 0.13 gal
• Travel Device: 2 × 0.34 gal
✅ NOISE EMISSIONS
• Noise level LwA (guaranteed): 98 dB(A)
• Noise level LwA (measured): 98 dB(A)
• Operator LpA: 78 dB(A)

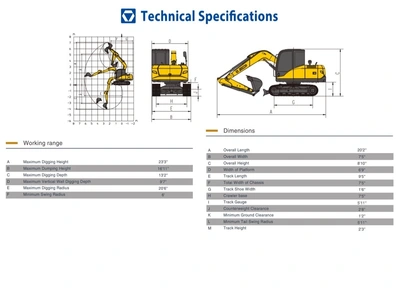

✅ WORKING RANGE
• Max Digging Height: 23'3"
• Max Dumping Height: 16'11"
• Max Digging Depth: 13'2"
• Max Vertical Wall Digging Depth: 9'7"
• Max Digging Radius: 20'6"
• Minimum Swing Radius: 6'
✅ DIMENSIONS
• Overall Length: 20'2"
• Overall Width: 7'5"
• Overall Height: 8'10"
• Width of Platform: 6'9"
• Track Length: 9'5"
• Total Width of Chassis: 7'5"
• Track Shoe Width: 1'6"
• Crawler Base: 7'5"
• Track Gauge: 5'11"
• Counterweight Clearance: 2'8"
• Minimum Ground Clearance: 1'2"
• Minimum Tail Swing Radius: 5'11"
• Track Height: 2'3"

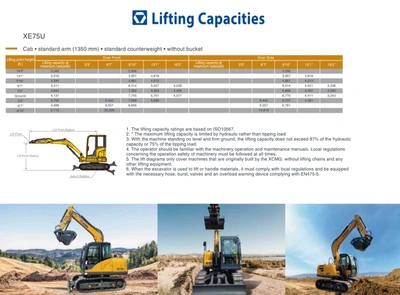

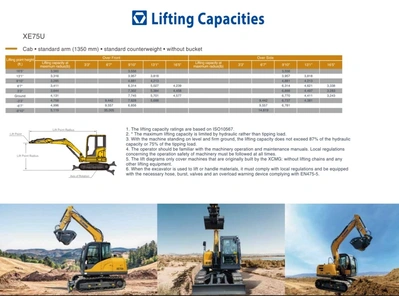

✅ LIFTING CAPACITY (ISO 10567)
Brochure includes full lifting chart for Cab • standard arm (1350 mm) • standard counterweight • without bucket. Notes: limits by hydraulic capacity vs tipping load; stability assumptions; proper lifting/handling devices required for material handling.
📍 Available through IronListing.com
📞 Call Garrett: (716) 353-3676
Ask about pricing, financing, and delivery options to get an XE75U on your jobsite today.
