New XCMG XE155U | Excavator

Description

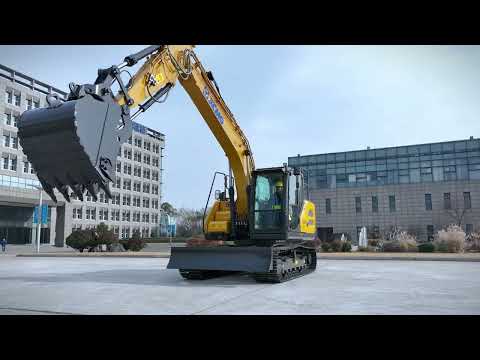

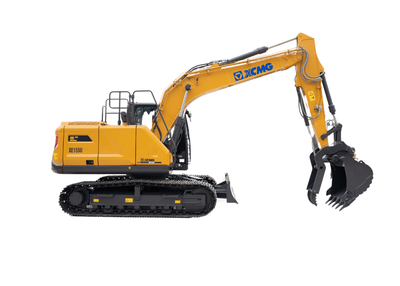

🚧 XCMG XE155U Hydraulic Excavator — Cummins Powered Production Machine

📞 Call 716-353-3676 for more information

If you’re shopping the 15–16 ton class, the XCMG XE155U is built to be a true production excavator—strong hydraulics, serious digging numbers, and a footprint that still works great on utilities, sitework, clearing, and general construction.

✅ Powered by a Cummins Tier 4 Final diesel
This isn’t an off-brand engine. The XE155U runs a Cummins B4.5—a name contractors trust for parts support, serviceability, and long-term uptime.

⸻

🔥 Engine (Cummins Tier 4 Final)
• Engine model: Cummins B4.5
• Cylinders: 4
• Rated power: 121 hp @ 2200 rpm (SAE J1995)
• Max torque: 369 lb-ft @ 1500 rpm
• Idle (low–high): 950–1100 rpm
• Bore x stroke: 4” x 5”
• Starter: 24V x 6.4 hp
• Batteries / Alternator: 2 x 12V, 95 Ah / 24V, 70A
• Air filtration: Donaldson PSD air filter + pre-filtered dust separator
• Emissions package per brochure: EGR + SCR + DPF (T4F compliant)

⸻

💪 Operating Weight / Ground Pressure (Triple Grouser)
• 24” shoes: 35,031 lb | 5.9 psi
• 20” shoes: 34,833 lb | 7.1 psi
• 28” shoes: 35,230 lb | 5.1 psi
• 31” shoes: 35,428 lb | 4.5 psi

⸻

⚙️ Hydraulics (Pumps, Flow, Pressure)

Main pumps
• Type: 2 x variable displacement tandem axial piston pumps
• Max flow @ 1800 rpm: 2 x 31 gpm

Pilot pump
• Type: Gear pump
• Max flow @ 1800 rpm: 4.8 gpm

Relief valve settings
• Pressure up: 4,978 / 5,405 psi
• Travel: 4,978 psi
• Swing: 3,627 psi
• Pilot: 589 psi

⸻

🧠 Hydraulic Cylinders (Bore x Rod x Stroke)
• Boom (Qty 2): 4.1” x 2.8” x 37”
• Arm (Qty 1): 4.5” x 3.1” x 44.1”
• Bucket (Qty 1): 3.9” x 2.8” x 33.5”

⸻

🔄 Swing Performance
• Max swing speed: 11.5 rpm
• Max swing torque: 28,027 ft-lb

⸻

🧊 Fluid Capacities
• Fuel tank: 66 gal
• Cooling system (radiator): 5.5 gal
• Urea (DEF) tank: 6.6 gal
• Hydraulic oil tank: 25.1 gal
• Engine oil: 2.9 gal
• Swing drive: 0.5 gal
• Travel device: 2 x 0.6 gal

⸻

🏁 Travel / Traction
• Travel speed (low–high): 1.0–3.9 mph
• Maximum traction: 25,628 lbf
• Maximum gradeability: 35° / 70%

⸻

🧱 Undercarriage
• Upper rollers (per side): 1
• Lower rollers (per side): 7
• Links & shoes (per side): 45
• Overall track length: 12’

⸻

📏 Dimensions (2 Front-End Configs)

Common
• Boom length: 15’1”
• Bucket capacity: 0.85 yd³
• Tail swing radius: 7’6”
• Shipping height (cab): 10’3”
• Shipping width: 8’8”
• Counterweight clearance: 3’7”
• Height over cab: 9’6”
• House width: 8’5”
• Cab height above house: 3’0”
• Cab width: 3’7”
• Tumbler distance: 9’7”
• Track length: 12’
• Track height: 3’3”

Option A — Arm 8’3”
• Shipping height (boom): 9’7”
• Shipping length: 25’6”
• Undercarriage width: 8’6”
• Shoe width (std): 24”
• Ground clearance: 1’9”

Option B — Arm 9’11”
• Shipping height (boom): 9’8”
• Shipping length: 25’7”
• Undercarriage width: 8’8”
• Shoe width (std): 28”
• Ground clearance: 1’8”

⸻

🕳️ Working Range (2 Arm Options)

Arm 8’3”
• Max digging reach: 27’2”
• Max reach (ground): 26’9”
• Max digging depth: 18’2”
• Max loading height: 20’4”
• Min loading height: 6’10”
• Max digging height: 28’4”
• Max bucket pin height: 24’5”
• Max vertical wall depth: 15’
• Max radius vertical: 18’4”
• Max depth cut (8’ level bottom): 17’4”
• Min radius (3 line): 7’2”
• Min swing radius: 8’1”
• Real swing radius: 7’6”
• Max blade height: 1’5”
• Max blade depth: 2’1”
• Blade height: 2’3”

Arm 9’11”
• Max digging reach: 28’9”
• Max reach (ground): 28’4”
• Max digging depth: 19’9”
• Max loading height: 21’7”
• Min loading height: 6’10”
• Max digging height: 29’4”
• Max bucket pin height: 25’7”
• Max vertical wall depth: 14’10”
• Max radius vertical: 20’9”
• Max depth cut (8’ level bottom): 19’2”
• Min radius (3 line): 7’1”
• Min swing radius: 8’2”
• Real swing radius: 7’6”
• Max blade height: 1’5”
• Max blade depth: 2’1”
• Blade height: 2’3”

⸻

⛏️ Digging Forces (ISO)

Arm 8’3”
• Bucket (Normal / Press Up): 22,256 / 24,055 lbf
• Arm (Normal / Press Up): 15,961 / 17,085 lbf

Arm 9’11”
• Bucket (Normal / Press Up): 22,256 / 23,830 lbf
• Arm (Normal / Press Up): 13,983 / 15,062 lbf

⸻

🧰 Component Weights
• Upper structure (without front): 17,789 lb
• Lower structure assembly: 11,382 lb
• Front assembly: 5,732 lb
• Counterweight: 6,399 lb
• Boom: ~15,172 lb (incl. bushing)
• Arm (8’3”): ~8,771 lb (incl. bushing)
• Arm (9’11”): ~9,177 lb (incl. bushing)

⸻

🪣 Bucket Options (SAE)

GP (General Purpose)
• 0.42 yd³ | 24” | 829 lb
• 0.52 yd³ | 35” | 948 lb
• 0.78 yd³ | 43” | 1,105 lb
• 0.92 yd³ | 49” | 1,188 lb

HD (Heavy Duty)
• 0.68 yd³ | 40” | 1,096 lb
• 0.72 yd³ | 41” | 1,135 lb
• 0.78 yd³ | 44” | 1,164 lb
• 0.85 yd³ | 44” | 1,198 lb
• 0.92 yd³ | 50” | 1,254 lb

SD (Severe Duty)
• 0.68 yd³ | 37” | 1,131 lb

⸻

🔇 Noise Ratings
• LpA (ISO 6396): 71 dB(A)
• LwA (ISO 6395): 101 dB(A)
📞 Call 716-353-3676 for more information
