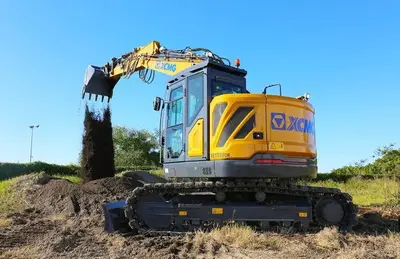

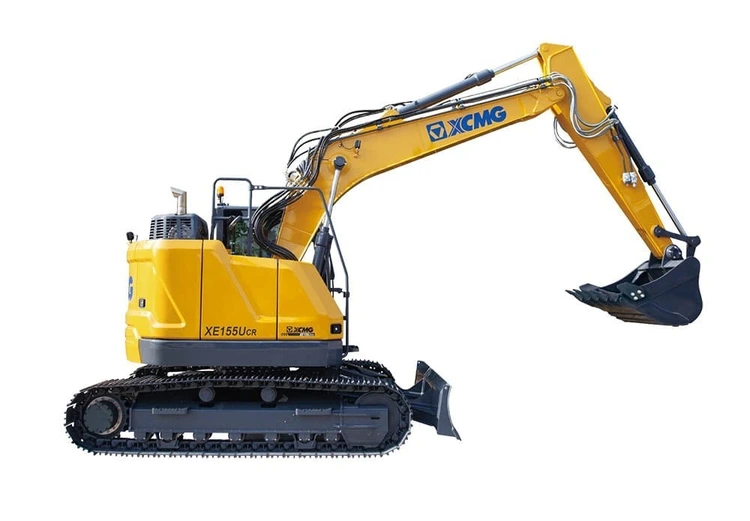

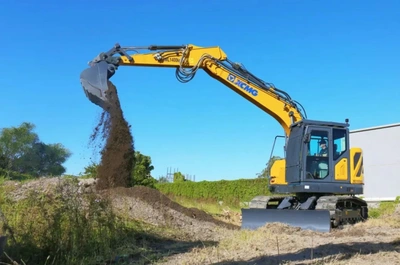

🚧 XCMG XE155UCR Hydraulic Excavator (Reduced Tail Swing) — Cummins Powered

📞 Call 716-353-3676 for more information

If you want a true production 15-ton class excavator that’s built for tight jobsites but still digs like a full-size machine, the XE155UCR is the sweet spot. The “UCR” (Ultra/Reduced Tail Swing) layout keeps the back end tucked in, so you can work confidently along roads, buildings, pipe runs, and traffic zones without constantly babysitting your counterweight.

And most importantly for buyers who care about long-term support and parts availability:
✅ This machine is powered by a Cummins Tier 4 Final engine.

⸻

🔥 Engine (Cummins Tier 4 Final)
• Engine model: Cummins B4.5
• Cylinders: 4
• Rated power: 121 hp @ 2200 rpm (SAE J1995)
• Max torque: 369 lb-ft @ 1500 rpm
• Idle (low–high): 950–1100 rpm
• Piston displacement: 1.2 gal
• Bore x stroke: 4” x 5”
• Starter: 24V x 6.4 hp
• Batteries / alternator: 2 x 12V – 70A / 24V
• Air filtration: Donaldson PSD air filter + pre-filtered dust separator
• Emissions package described in brochure: Turbocharged / aftercooled, electronic controls, SCR + DPF

⸻

💪 Operating Weight / Ground Pressure

Triple grouser shoes
• 24” shoes: 36,751 lb | 5.1 psi
• 28” shoes: 37,148 lb | 4.4 psi

⸻

⚙️ Hydraulics (Pumps, Flow, Pressure)

Main pumps
• Type: 2 x variable displacement tandem axial piston pumps
• Max flow @ 1800 rpm: 2 x 30 gpm

Pilot pump
• Type: Gear pump
• Max flow @ 1800 rpm: 4.8 gpm

Relief valve settings
• Pressure up: 4,978 / 5,405 psi
• Travel: 4,978 psi
• Swing: 3,627 psi
• Pilot: 589 psi

⸻

🧠 Hydraulic Cylinder Sizes

(Bore x rod diameter x stroke)
• Boom (Qty 2): 4.1” x 2.8” x 37”
• Arm (Qty 1): 4.5” x 3.1” x 44.1”
• Bucket (Qty 1): 3.9” x 2.8” x 33.5”

⸻

🔄 Swing Performance
• Maximum swing speed: 11.3 rpm
• Maximum swing torque: 25,077 ft-lb

⸻

🧊 Fluid Capacities
• Fuel tank: 52.8 gal
• Cooling system (radiator): 5 gal
• Urea (DEF) tank: 4.5 gal
• Hydraulic oil tank: 23.8 gal
• Engine oil: 2.9 gal
• Swing drive: 0.5 gal
• Travel device: 2 x 0.6 gal

⸻

🏁 Travel / Traction
• Travel speed (low–high): 1.8–2.9 mph
• Maximum traction: 30,124 lbf
• Maximum gradeability: 35° / 70%

⸻

🧱 Undercarriage (Rollers / Shoes)
• Upper rollers (per side): 2
• Lower rollers (per side): 7
• Links & shoes (per side): 46
• Overall track length: 12’3”

⸻

📏 Dimensions (XE155UCR)
• Boom length: 15’1”
• Arm length: 8’3”
• Bucket capacity: 0.85 yd³
• Tail swing radius: 5’
• Shipping height (boom): 9’7”
• Shipping height (alarm lamp): 10’3”
• Shipping length: 26’1”
• Blade height: 2’3”
• Counterweight clearance: 3’7”
• Height over cab: 9’6”
• Upper structure width: 8’2”
• Cab height above engine hood: 2’2”
• Cab width: 3’4”
• Tumbler distance: 9’10”
• Track length: 12’3”
• Undercarriage width: 8’6”
• Shoe width (std): 24”
• Track height: 3’3”
• Ground clearance: 1’9”

⸻

🕳️ Working Range
• Max digging reach: 27’3”
• Max digging reach (ground): 26’9”
• Max digging depth: 18’2”
• Max unloading height: 20’4”
• Min loading height: 6’10”
• Max digging height: 28’6”
• Max bucket pin height: 24’5”
• Max vertical wall depth: 15’
• Max radius vertical: 11’4”
• Max depth cut (2440mm / 8ft level bottom): 17’5”
• Min swing radius: 8’1”
• Min tail swing radius: 5’
• Max blade lifting height: 1’5”
• Max blade cutting depth: 1’4”

⸻

🧰 Component Weights
• Upper structure (without front attachment): 19,842 lb (with counterweight)
• Lower structure assembly: 12,059 lb (24” shoe)
• Front assembly: 4,696 lb (without cylinder)
• Counterweight: 7,275 lb (standard counterweight)
• Boom (15’1”): 11,993 lb (not including bushing)
• Arm (8’3”): 7,969 lb (not including bushing)

⸻

🪣 Bucket Options (SAE)

GP (General Purpose)
• 0.42 yd³ | 24” | 829 lb | Class A
• 0.52 yd³ | 35” | 946 lb | Class A
• 0.78 yd³ | 43” | 1,105 lb | Class B
• 0.92 yd³ | 49” | 1,188 lb | Class C

HD (Heavy Duty)
• 0.68 yd³ | 40” | 1,096 lb | Class A
• 0.72 yd³ | 41” | 1,135 lb | Class A
• 0.78 yd³ | 44” | 1,164 lb | Class B
• 0.85 yd³ | 44” | 1,198 lb | Class B
• 0.92 yd³ | 50” | 1,254 lb | Class C

SD (Severe Duty)
• 0.68 yd³ | 37” | 1,131 lb | Class A

⸻

🔇 Noise Ratings
• LpA (ISO 6396): 73 dB(A)
• LwA (ISO 6395): 99 dB(A)
