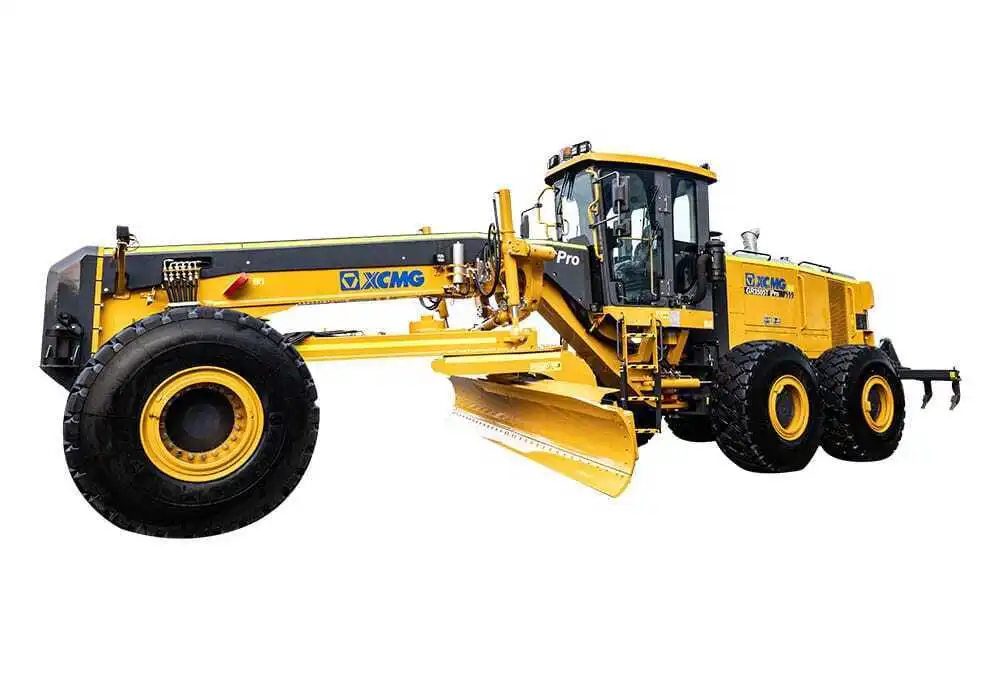

π GR3505T Pro Motor Grader β 350 HP Extreme-Duty Grading Power | 163,142 lb Operating Weight
π Available on IronListing.com
π Call for Pricing & Details: 716-353-3676
The GR3505T Pro is an ultra-heavy-duty production motor grader engineered for mining, mass earthmoving, and large-scale infrastructure projects. With a massive 350 HP powerplant and an incredible 163,142 lb operating weight, this machine delivers outstanding traction, stability, and cutting authority in the harshest working conditions.
Purpose-built for continuous high-load operation, the GR3505T Pro combines intelligent control systems, heavy mining-grade components, and advanced hydraulics to maximize uptime and productivity.
βΈ»

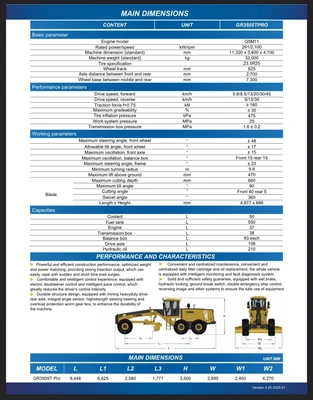

π§ Key Specifications
β’ Model: GR3505T Pro
β’ Rated Power: 350 HP
β’ Operating Weight: 163,142 lbs
β’ Engine Model: Cummins QSM11
β’ Tire Size: 23.5R25
β’ Maximum Gradeability: β₯30%
β’ Tractive Effort (f=0.75): β₯160 kN
β’ Moldboard (L Γ H): 192 in Γ 27 in (4,877 Γ 686 mm)
β’ Maximum Cutting Depth: 26 in (660 mm)
β’ Maximum Lift Above Ground: 18.5 in (470 mm)
β’ Forward Speed: Up to 28 mph (45 km/h)
βΈ»
β
Capacities
β’ Fuel Tank: 145 gal (550 L)
β’ Hydraulic Oil: 55 gal (210 L)
β’ Engine Oil: 9.8 gal (37 L)
β’ Transmission: 10 gal (38 L)
β’ Balance Box: 93 L each
β’ Drive Axle: 106 L
βΈ»
β
Key Performance Features
β’ High-output 350 HP Cummins QSM11
β’ Mining-grade heavy tandem drive & frame
β’ Wet brake system with dual emergency stop
β’ Electric double-lever + intelligent control panel
β’ Reversing camera & full safety monitoring
β’ Built for continuous high-production mining and heavy civil work
βΈ»
β
Perfect For:
β’ Mining & quarry operations
β’ Heavy civil & infrastructure construction
β’ Large highway & airport projects
β’ Mass earthmoving & haul-road maintenance
β’ Extreme-duty industrial grading
π Call 716-353-3676 today for pricing, financing, and delivery options.
π Available now on IronListing.com
π GR3505T Pro Motor Grader β 350 HP Extreme-Duty Grading Power | 163,142 lb Operating Weight
π Available on IronListing.com
π Call for Pricing & Details: 716-353-3676
The GR3505T Pro is an ultra-heavy-duty production motor grader engineered for mining, mass earthmoving, and large-scale infrastructure projects. With a massive 350 HP powerplant and an incredible 163,142 lb operating weight, this machine delivers outstanding traction, stability, and cutting authority in the harshest working conditions.
Purpose-built for continuous high-load operation, the GR3505T Pro combines intelligent control systems, heavy mining-grade components, and advanced hydraulics to maximize uptime and productivity.
βΈ»
π§ Key Specifications
β’ Model: GR3505T Pro
β’ Rated Power: 350 HP
β’ Operating Weight: 163,142 lbs
β’ Engine Model: Cummins QSM11
β’ Tire Size: 23.5R25
β’ Maximum Gradeability: β₯30%
β’ Tractive Effort (f=0.75): β₯160 kN
β’ Moldboard (L Γ H): 192 in Γ 27 in (4,877 Γ 686 mm)
β’ Maximum Cutting Depth: 26 in (660 mm)
β’ Maximum Lift Above Ground: 18.5 in (470 mm)
β’ Forward Speed: Up to 28 mph (45 km/h)
βΈ»
β
Capacities
β’ Fuel Tank: 145 gal (550 L)
β’ Hydraulic Oil: 55 gal (210 L)
β’ Engine Oil: 9.8 gal (37 L)
β’ Transmission: 10 gal (38 L)
β’ Balance Box: 93 L each
β’ Drive Axle: 106 L
βΈ»
β
Key Performance Features
β’ High-output 350 HP Cummins QSM11
β’ Mining-grade heavy tandem drive & frame
β’ Wet brake system with dual emergency stop
β’ Electric double-lever + intelligent control panel
β’ Reversing camera & full safety monitoring
β’ Built for continuous high-production mining and heavy civil work
βΈ»
β
Perfect For:
β’ Mining & quarry operations
β’ Heavy civil & infrastructure construction
β’ Large highway & airport projects
β’ Mass earthmoving & haul-road maintenance
β’ Extreme-duty industrial grading
π Call 716-353-3676 today for pricing, financing, and delivery options.
π Available now on IronListing.com
