XCMG Global, XCT160_Y1
Have one to sell?
ConditionNew
New

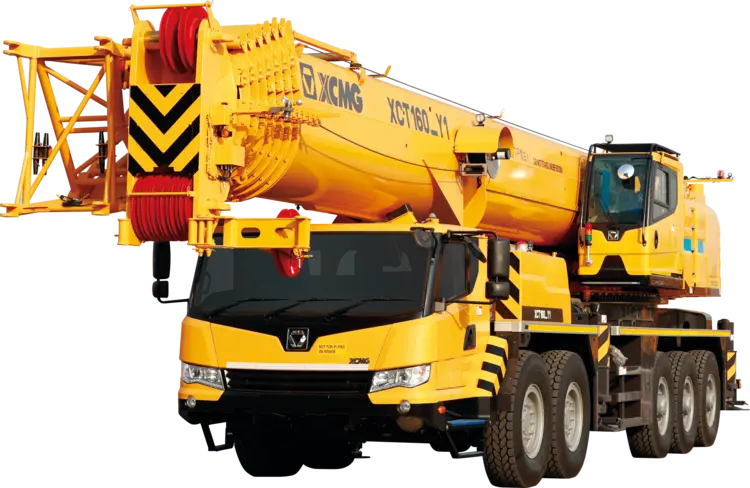

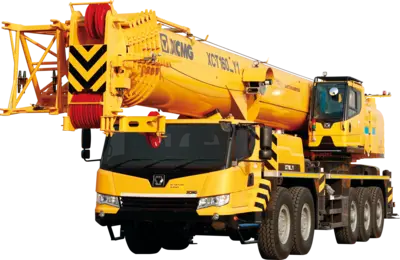

XCT160_Y1 is a 5-axle, 160-tonne truck crane with a wide range of
applicable operation modes and economical operation. It is widely used for the infrastructure constructions in high-speed railway
project, urban overpass construction, assembly and disassembly of tower
crane, etc., as well as the lifting and installation operations in the other
complex working environments, such as oilfields and chemical industry.
Max. load capacity: 160 t
Telescopic boom: 88 m
Number of axles: 5
Max. hoist height: 116 m
Max.load moment: 4939 kN.m
Drive engine model: WP10HG400E670
Drive engine power: 294 kw
Drive/Steering: 10×6×8
Driving speed: 48 km/h
Dead Weight in Travel State: 54900 kg
Dimensions: 16393×3000×3990 mm
Emission standard: BSV
