XCMG Global, XCA450_K
Have one to sell?
ConditionNew
New

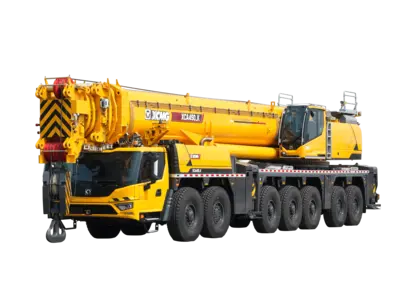

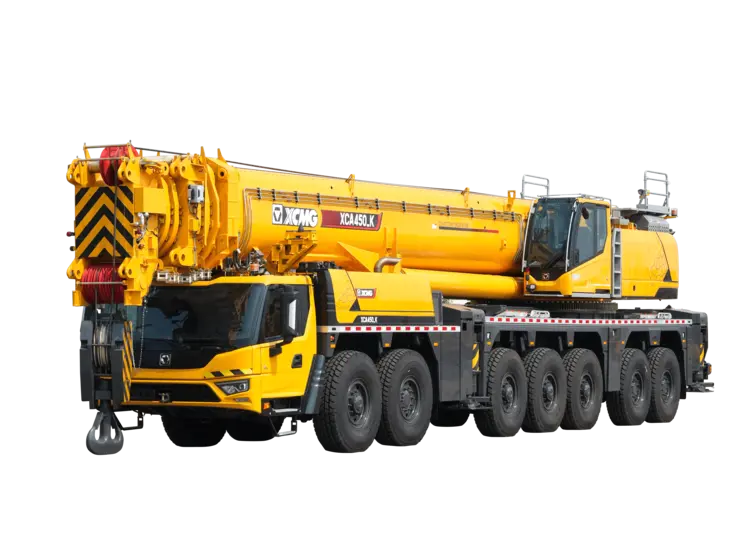

The XCA 450_K A is a 7-axle, 450-ton all-terrain crane featuring extensive operational coverage and a super-lift system. Its boom comprises 8 sections extending to 93.1 m, paired with a Y-shaped dual-rope super-lift configuration. Optional jibs include a 50.5 m fixed jib or 91.7 m luffing jib, supported by up to 130 t counterweight. Power and control systems utilize a dual-engine setup, dual-slewing mechanism, and dual-luffing cylinders.The 7-axle all-terrain chassis employs an H-shaped outrigger configuration, with 4 driven axles and 7-axle full steering capability.
Max. load capacity: 450 t
Telescopic boom: 93.1 m
Number of axles: 7
Max. hoist height: 133 m
Max.load moment: 12348 kN.m
Drive engine model: OM473LA.E5-1
Drive engine power: 480 kw
Drive/Steering: 14×8×14
Driving speed: 60 km/h
Dead Weight in Travel State: 98200 kg
Dimensions: 19608×3000×4000 mm
Emission standard: EU Stage V
