XCMG Global, XTG85
Have one to sell?
ConditionNew
New

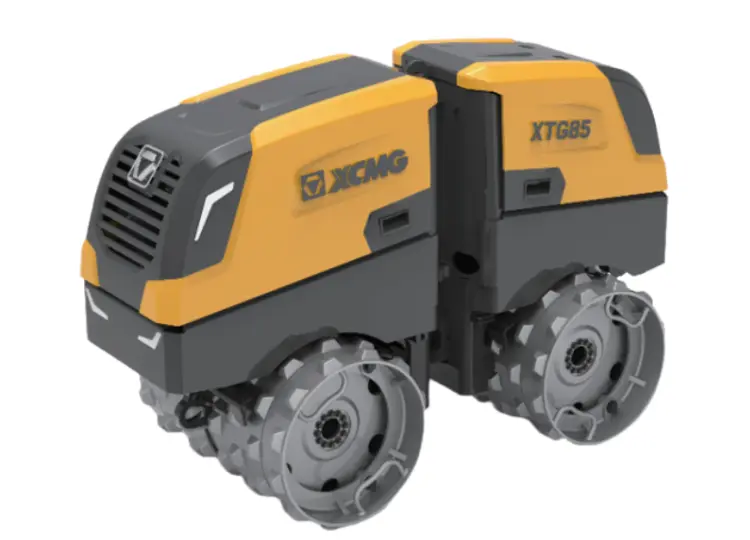

XTG85 trench compactor has large centrifugal force, vertical vibration, two-stage amplitude, remote control, safe and reliable. With compact structure and flexible maneuverability, it is especially suitable for ditch and sewer construction, backfilling and foundation soil compaction.The machine adopts Kubota three-cylinder water-cooled engine, suitable for ambient temperature -10 ℃ above the altitude of 3000 m below the environment, in line with the Euro 5 / North America four-stage emission requirements.
Operating weight: 1600 kg
Front axle weight: 800 kg
Rear axle weight: 800 kg
Static linear load: 92/92 N/cm
Operating speed: 1.2/2.8 km/h
Theoretical gradeability: 55/45 %
Minimum turning radius: 1440/2290(inside/outside) mm
Minimum ground clearance: 225 mm
Wheelbase: 1000 mm
Braking distance: ≤ 1.6(smooth cement pavement) m
Model: KUBOTA
Dimensions: 1,910 x 610 x 1,300 mm
Emission standard: EU Stage V / T4F
