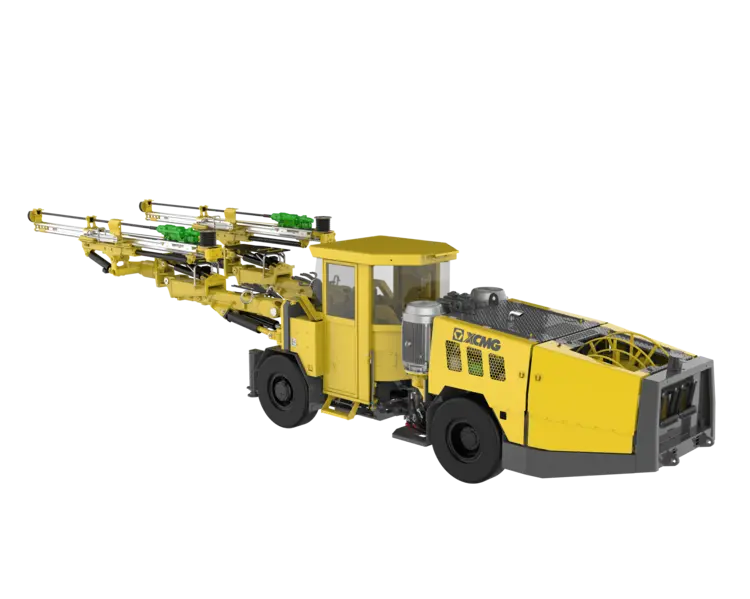

XCMG Global, XUD235B
Have one to sell?
ConditionNew
New
High Reliability: The light aluminum alloy beam has high bending, torsion and fatigue resistance. The unique single-layer hose reel can effectively improve the hose life and reduce the maintenance strength.Precise Operation: The drill boom structure is newly optimized and upgraded to get larger extension stroke and shorter retracted length.Stable Construction: The drilling system has anti-jamming, anti-idle-drilling and automatic withdraw functions, which can effectively improve the drilling efficiency and reduce the loss of drilling tools.Safety Protection: The full cover structure, top anti-skid design, and air spring assisted opening of left and right doors provide convenience for maintenance. The enclosed cab with cooling and heating A/C ensures low dust and noise.Intelligent Control System: The whole machine is equipped with a fully electronic control system based on CAN bus, which is easy and fast to operate.
Engine Brand: Cummins /
Engine Model: B3.9CS4 130 /
Engine Rated power: 96 kW
Engine Emission standard: 欧III/国四 Euro Stage III/China Stage IV /
Rock drill Brand: 蒙特贝/XCMG /
Rock drill Model: HC95SA/XHD20 /
Rock drill Impact power: 21/20 kW
Drill boom Boom extension: 1450 mm
Drill boom Feed extension: 1250 mm
Feed beam Total length: 5380/5990（选配 Optional） mm
Feed beam Drill steel length: 3700/4310（选配） mm
Feed beam Single-pass drilling depth: 3400/4000（选配） mm
Water system Rated flow: 6 m3/h
Water system Min. water inlet pressure: 2 bar
Air system Flow: 1150 L/min
Air system Pressure: 10 bar
Electrical system Voltage: 380 V
Electrical system Frequency: 50 Hz
Electrical system Cable length: 80 m
Chassis Gradeability: 14 °
Chassis Traveling speed: 15 km/h
Dimensions Transport state: 12611×2000×2750 mm
Total operating weight: 22.5 t
