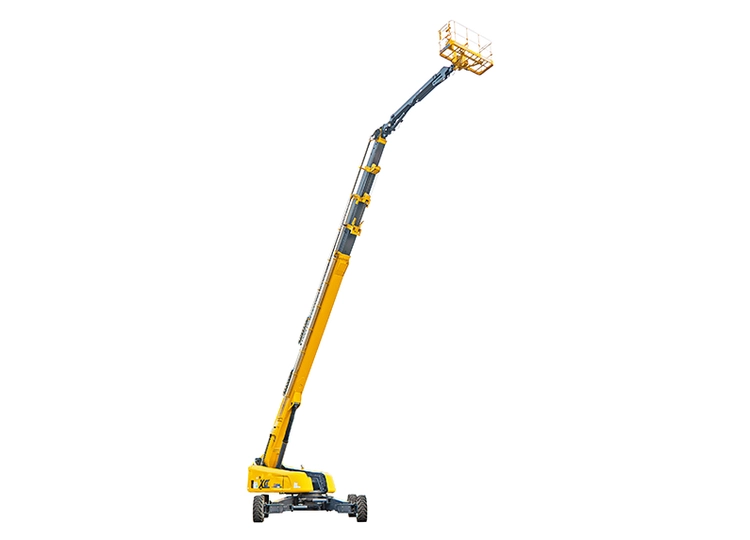

XCMG Global, XGS58K

Working Height: 58600 mm
Lift capacity: 230(unlimited)/450(limited) kg
Weight: 27900 kg
Overall dimension-Stowed: 19450x2490x3070 mm
Overall dimension-Transportation: 14600x2490x3070 mm
Dimension of working platform: 2400x900x1150 mm
Wheelbase: 5220（Axle retracted）4590（Axle extended） mm
Overall Width: 2490mm/5030mm Axle retracted/Axle extended
Fly jib length: 3970(Axle retracted)/5970（Axle extended） mm
Ground clearance: 250 mm
Max.Platform height: 56.6 m
Max.Working range: 24.4 m
Max.Occupants: 3
Max.Working slope: X-3°/ Y-3°
Telescopic boom luffing range: -1～+80°
Flying jib luffing range: -45°~+75°
Turntable rotation: 360°
Platform rotation: 160°
Drive speed: 4.5km/h stowed
Drive speed: 0.5km/h Up or extended
Min.Turning radius-Axle retracted: 13810mm/17140mm(2-wheel)
7100mm/9500mm(4-wheel) inside/outside
Min.Turning radius-Axle extended: 2800mm/9200mm(2-wheel)
2300mm/6600mm(4-wheel) inside/outside
Turntable tailswing: 2320mm/1050mm Axle retracted/Axle extended
Max.Gradeability: 45% (24°)
