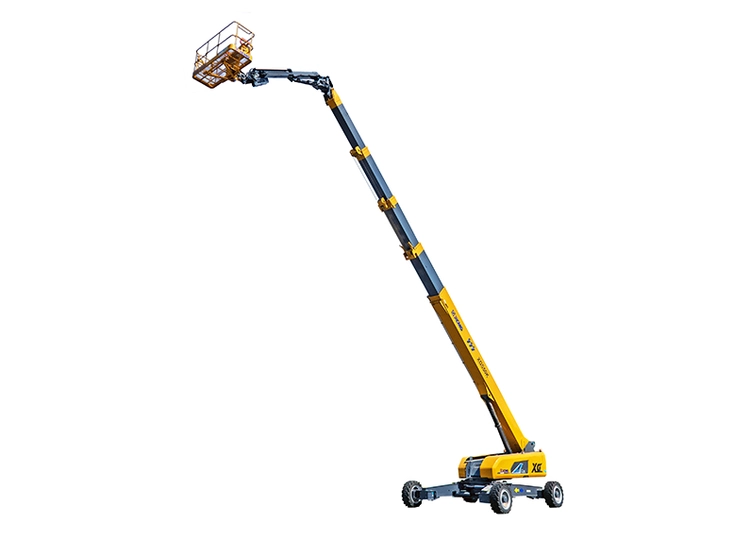

XCMG Global, XGS50K

Working Height: 50000 mm
Lift capacity: 300kg (unlimited)/460kg(limited) kg
Weight: 24400 kg
Overall dimension-Stowed: 17460x2490x3000 mm
Overall dimension-Transportation: 12550x2490x3000 mm
Dimension of working platform: 2400x900x1150 mm
Wheelbase: 4630（Axle retracted）/4243（Axle extended） mm
Overall Width: 2490 mm/5030 mm Axle retracted/Axle extended
Fly jib length: 3970(Axle retracted)/5970（Axle extended） mm
Ground clearance: 400 mm
Max.Platform height: 48 m
Max.Working range: 25.2 m
Max.Occupants: 3
Max.Working slope: X-3°/ Y-3°
Telescopic boom luffing range: 0～+80°
Flying jib luffing range: -45°~+75°
Turntable rotation: 360°
Platform rotation: 160°
Drive speed: 4.5 km/h stowed
Drive speed: 0.5 km/h Up or extended
Min.Turning radius-Axle retracted: 13810/17140 mm(2-wheel) 7100mm/9500 mm(4-wheel) inside/outside
Min.Turning radius-Axle extended: 5500mm/8700mm(2-wheel) 2400mm/6300mm(4-wheel) inside/outside
Turntable tailswing: 2000 mm/730 mm Axle retracted/Axle extended
Max.Gradeability: 45% (24°)
