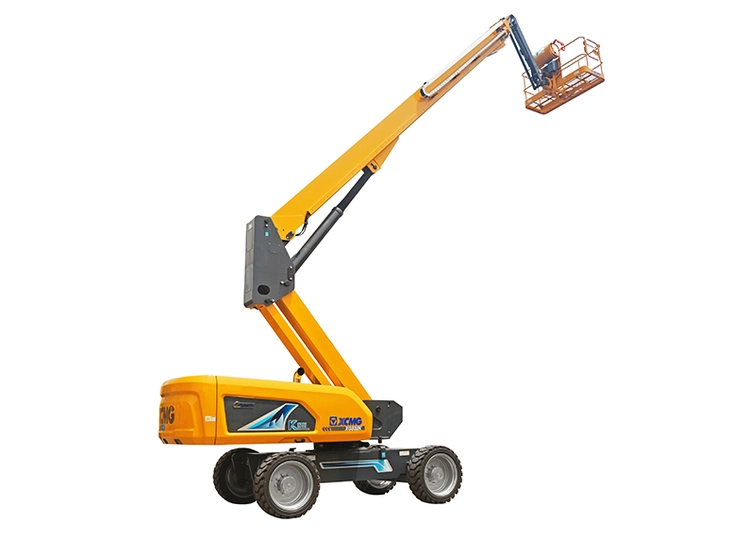

XCMG Global, XGS32K

Working Height: 32600 mm
Lift capacity: 300kg(unlimited)/460kg(limited) kg
Weight: 18500 kg
Overall dimension-Stowed: 13100x2490x2980 mm
Overall dimension-Transportation: 13100x2490x2980 mm
Dimension of working platform: 2440x910x1150 mm
Wheelbase: 3000 mm
Fly jib length: 1850 mm
Ground clearance: 400 mm
Max.Platform height: 30.6 m
Max.Working range: 20 m
Max.Occupants: 3
Max.Working slope: X-5°/ Y-5°
Telescopic boom luffing range: -4°~ +73°
Flying jib luffing range: -65°~ +70°
Turntable rotation: 360°
Platform rotation: 160°
Drive speed: 5.5km/h stowed
Drive speed: 0.6km/h Up or extended
Min.Turning radius: 4400mm/6250mm inside/outside
Turntable tailswing: 2030mm stowed
Max.Gradeability: 45% (24°)
