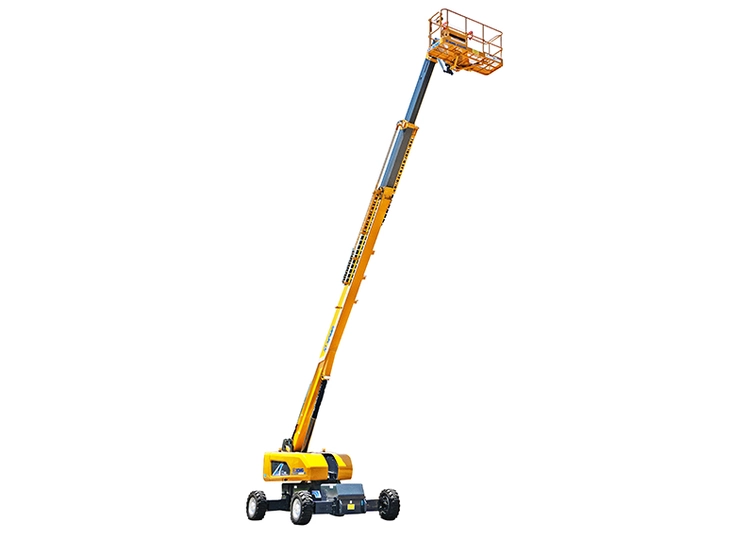

XCMG Global, XGS34K

Working Height: 34300 mm
Lift capacity: 300kg (unlimited)/460kg(limited) kg
Weight: 19300 kg
Overall dimension-Stowed: 14400x2490x3000 mm
Overall dimension-Transportation: 12800x2490x3000 mm
Dimension of working platform: 2400x900x1150 mm
Wheelbase: 3800 mm
Overall Width: 2490mm/3800mm Axle retracted/Axle extended
Fly jib length: 1420 mm
Ground clearance: 300 mm
Max.Platform height: 32.3 m
Max.Working range: 34.7 m
Max.Occupants: 3
Max.Working slope: X-3°/ Y-3°
Telescopic boom luffing range: -6～+75°
Flying jib luffing range: -60°~+70°
Turntable rotation: 360°
Platform rotation: 160°
Drive speed: 5.0 km/h stowed
Drive speed: 0.5 km/h Up or extended
Min.Turning radius-Axle retracted: 7700mm/10800mm(2-wheel) 4400mm/6800mm(4-wheel) inside/outside
Min.Turning radius-Axle extended: 5000mm/8000mm(2-wheel) 2400mm/5800mm(4-wheel) inside/outside
Turntable tailswing: 2085/1430mm Axle retracted/Axle extended
Max.Gradeability: 45% (24°)
