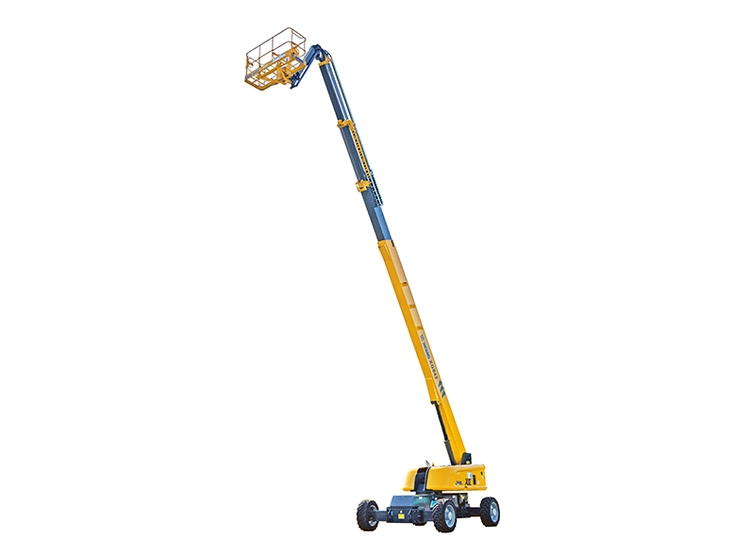

XCMG Global, XGS43

Working Height: 43300 mm
Lift capacity: 230(unlimited)/450(limited) kg
Weight: 22000 kg
Overall dimension-Stowed: 14900x2490x3050 mm
Overall dimension-Transportation: 12000x2490x3050 mm
Dimension of working platform: 2400x900x1150 mm
Wheelbase: 3800 mm
Overall Width: 2490mm/3800mm Axle retracted/Axle extended
Fly jib length: 2440 mm
Ground clearance: 320 mm
Max.Platform height: 41.3 m
Max.Working range: 25 m
Max.Occupants: 2/3
Max.Working slope: X-3°/ Y-3°
Telescopic boom luffing range: -1～+75°
Flying jib luffing range: -60°~+70°
Turntable rotation: 360°
Platform rotation: 160°
Drive speed: 5km/h stowed
Drive speed: 0.5km/h Up or extended
Min.Turning radius-Axle retracted: 7700mm/10800mm(2-wheel) 3300mm/6800mm(4-wheel) inside/outside
Min.Turning radius-Axle extended: 3300mm/8200mm(2-wheel) 2400mm/5800mm(4-wheel) inside/outside
Turntable tailswing: 2390mm/1725mm Axle retracted/Axle extended
Max.Gradeability: 40% (21°)
