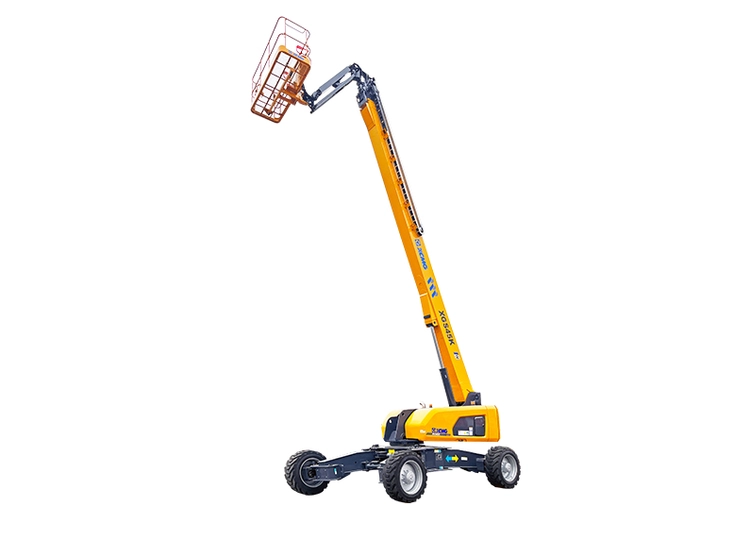

XCMG Global, XGS45K

Working Height: 45100 mm
Lift capacity: 300kg (unlimited)/460kg(limited) kg
Weight: 22200 kg
Overall dimension-Stowed: 15420x2490x2940 mm
Overall dimension-Transportation: 12530x2490x3940 mm
Dimension of working platform: 2400x900x1150 mm
Wheelbase: 4630（Axle retracted）/4243（Axle extended） mm
Overall Width: 2490mm/4400mm Axle retracted/Axle extended
Fly jib length: 2440 mm
Ground clearance: 400 mm
Max.Platform height: 43.1 m
Max.Working range: 25.2 m
Max.Occupants: 3
Max.Working slope: X-3°/ Y-3°
Telescopic boom luffing range: -1～+75°
Flying jib luffing range: -60°~+70°
Turntable rotation: 360°
Platform rotation: 160°
Drive speed: 5.0 km/h stowed
Drive speed: 0.5 km/h Up or extended
Min.Turning radius-Axle retracted: 14800mm/17200mm(2-wheel) 7100mm/9600mm(4-wheel) inside/outside
Min.Turning radius-Axle extended: 5500mm/8700mm(2-wheel) 2400mm/6300mm(4-wheel) inside/outside
Turntable tailswing: 2649mm/1694mm Axle retracted/Axle extended
Max.Gradeability: 40% (21°)
