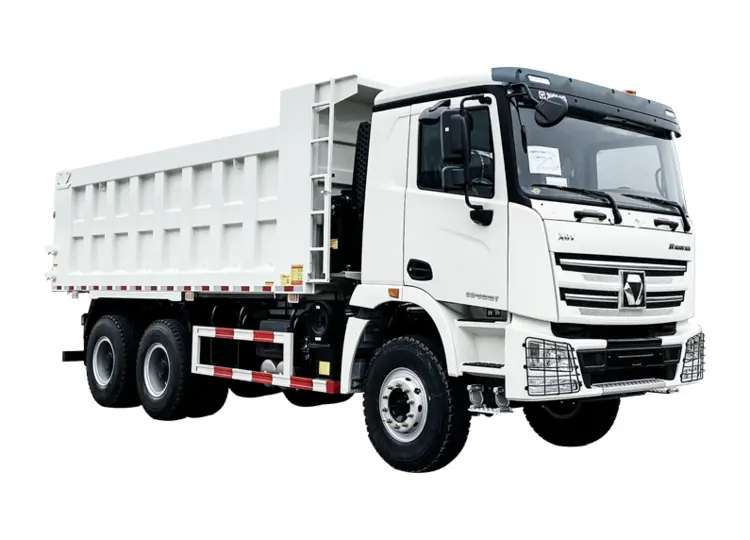

XCMG Global, XGA3251D2WC
Have one to sell?
ConditionNew
New
High-strength duel-deck frame adopted, parially three decks for reinforcement, stronger bearing capacity, easy steering under heavy-duty conditions, and suitable for severely adverse conditions.400HP engine equipped with standard four-valve for strong perormance and quick star. 7.5t fat-axle adopted as the front axle with ground clearance of more than 285mm, and bumper rail designed on the bottom of the radiator, with good passability in any place with complicated road conditions.XGA3251D2WC oil tank, air reseroir ground clearance ≥400mm, reduced possibility of edge collision; with ground clearance 250px higher than that of competitors, which can efectively protect chassis component, letting it pass through harsh conditions efciently and conveniently.
Drive Type: 6×4
Kerb Mass: 16300 kg
GVW: 47300 kg
Max. Speed: 78 km/h
Min. Turning Diameter: 18 m
Grade Ability: ≥30%
Fuel Tank: 400 L
Dimension: 8700×2550×3380 mm
Wheelbase: 4000+1400 mm
Min. Clearance: 285 mm
Approach Angle: 27°
Departure Angle: 36°
Cargo size: 5800×2300×1500 mm
Cabin Model: XG1-H
Left/Right Driving: LHD
AC: Standard
Person Allowed in: 2
Engine Model: SC10E400Q3B
Emission Standard: EUR II
Displacement: 10.42 L
Output Power: 294 KW
Max Torque Speed: 1600 km/h
Transmission Model: 10JSD180T
PTO: QH50
Front Axle Model: 7.5T
Rear Axle Model: 16T
Main Reducer Ratio: 5.262
Rim: 8.5V-20 | 9.00×22.5
Tire: 12.00R20 | 12R22.5 | 315/80R22.5
