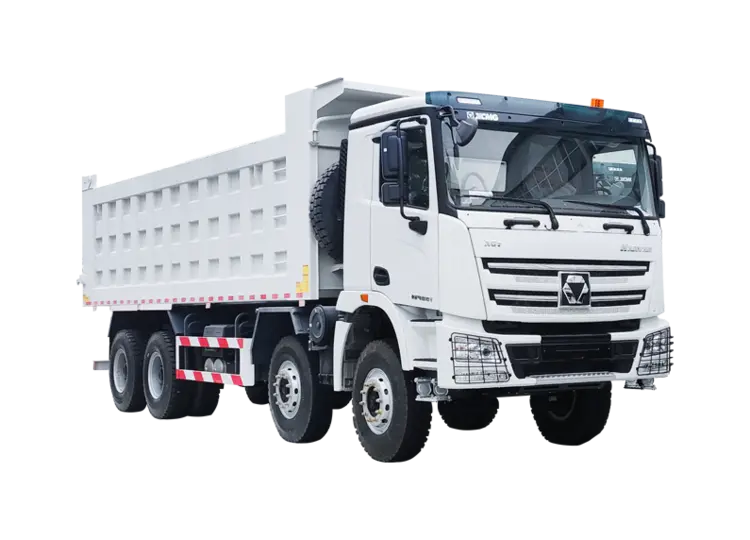

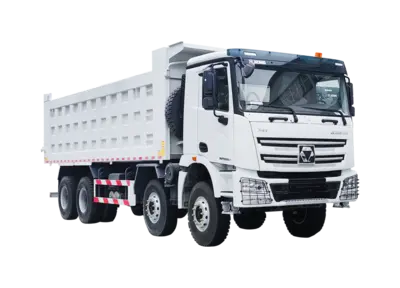

XCMG Global, XGA3311D2WE
Have one to sell?
ConditionNew
New
High-strength duel-deck frame adopted, parially three decks for reinforcement, stronger bearing capacity, easy steering under heavy-duty conditions, and suitable for severely adverse conditions.400HP engine equipped with standard four-valve for strong perormance and quick star.7.5t fat-axle adopted as the front axle with ground clearance of more than 285mm, and bumper rail designed on the bottom of the radiator, with good passability in any place with complicated road conditions.
Drive Type: 8×4
Kerb Mass: 21700 kg
GVW: 70000 kg
Max. Speed: 77 km/h
Min. Turning Diameter: 24.4 m
Grade Ability: ≥30%
Fuel Tank: 400 L
Dimension: 10600×2550×3560 mm
Wheelbase: 1950+3750+1450 mm
Min. Clearance: 306 mm
Approach Angle: 28°
Departure Angle: 42°
Cargo size: 7800×2300×1500 mm
Cabin Model: XG1-H
Left/Right Driving: LHD
AC: Standard
Person Allowed in: 2
Engine Model: SC10E400Q3B
Emission Standard: EUR II
Displacement: 10.4 L
Output Power: 294 KW
Max Torque Speed: 1650 km/h
Transmission Model: 10JSD180T
PTO: QH50
Front Axle Model: 7.5T
Rear Axle Model: 16T
Main Reducer Ratio: 5.92
Rim: 8.5V-20 | 9.00×22.5
Tire: 12.00R20 | 315/80R22.5
