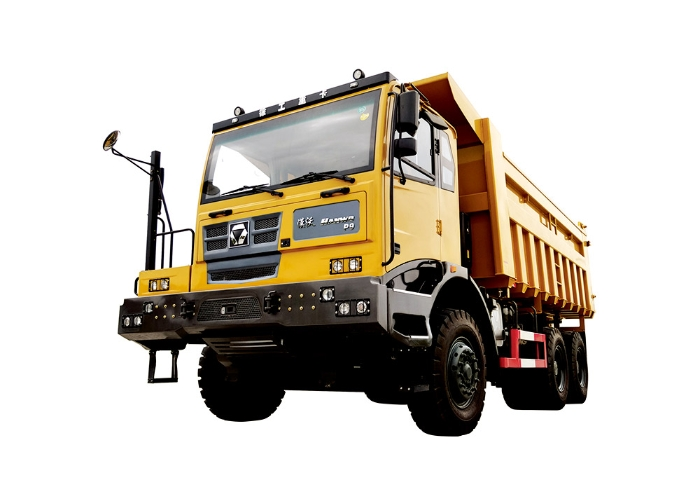

We have fully considered the customer demands and finalize the cnguration after thousands of high-strengh industrial assesments in diferent construction environments. Approved by national military field testing and TUV certification, the performance is highly adaptive to all complex working conditions that cannot be coped with by traditional dump truck. Our trucks are widely used for surface mining, water conservancy construction, short-distance transporation, removing mountains for filling seas or other construction projects.
Drive Type: 6×4
Kerb Mass: 34680 kg
GVW: 91000 kg
Max. Speed: 44 km/h
Min. Turning Diameter: 11.1 m
Grade Ability: 0.27
Fuel Tank: 500 L
Dimension: 8940×3500×3960 mm
Wheelbase: 4700+1600 mm
Min. Clearance: 350 mm
Approach Angle: 35°
Departure Angle: 42°
Cargo size: 7400×3300×2100 mm
Cabin Model: 3.3m Left dislocation cab
Left/Right Driving: LHD
AC: Optional
Person Allowed in: 1
Engine Model: WP13G530E310
Emission Standard: EUR III
Displacement: 12.54 L
Output Power: 390 KW
Max Torque Speed: 2300 N·m
Transmission Model: Allison 4800 ORS
PTO: CS10-A1005-J32X
Front Axle Model: 19T
Rear Axle Model: 35T
Main Reducer Ratio: 17.2
Rim: 10.00V-25
Tire: 14.00R25
