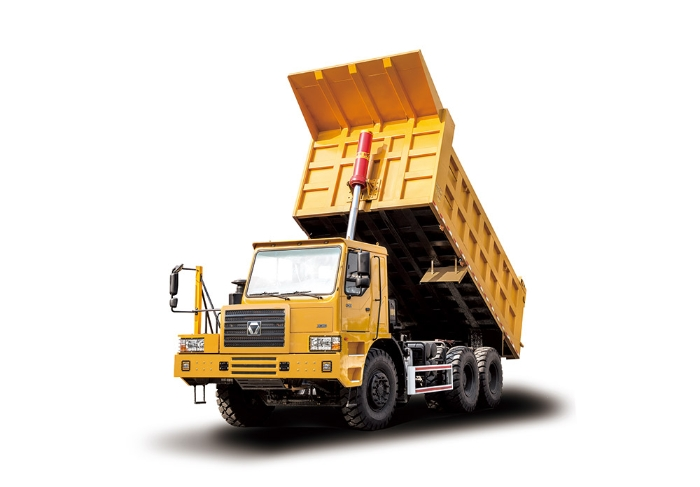

XCMG Global, NXG5760DTQ
Have one to sell?
ConditionNew
New
We have fully considered the customer demands and finalize the cnguration after thousands of high-strengh industrial assesments in diferent construction environments. Approved by national military field testing and TUV certification, the performance is highly adaptive to all complex working conditions that cannot be coped with by traditional dump truck. Our trucks are widely used for surface mining, water conservancy construction, short-distance transporation, removing mountains for filling seas or other construction projects.
Drive Type: 6×4
Kerb Mass: 26500 kg
GVW: 76000 kg
Max. Speed: 55 km/h
Min. Turning Diameter: 9.6 m
Grade Ability: ≥40%
Fuel Tank: 400 L
Dimension: 8875×3335×3915 mm
Wheelbase: 3900+1600 mm
Min. Clearance: 345 mm
Approach Angle: 38°
Departure Angle: 45°
Cargo size: 5800×3150×1700 mm
Cabin Model: 3.0m Left dislocation cab
Left/Right Driving: LHD
AC: Optional
Person Allowed in: 1
Engine Model: WD12G420E211
Emission Standard: EUR III
Displacement: 11.596 L
Output Power: 309 KW
Max Torque Speed: 1750 N·m
Transmission Model: 9JSD220
PTO: QH70
Front Axle Model: 16T
Rear Axle Model: 30T
Main Reducer Ratio: 11.125
Rim: 10.00-25
Tire: 14.00-25
