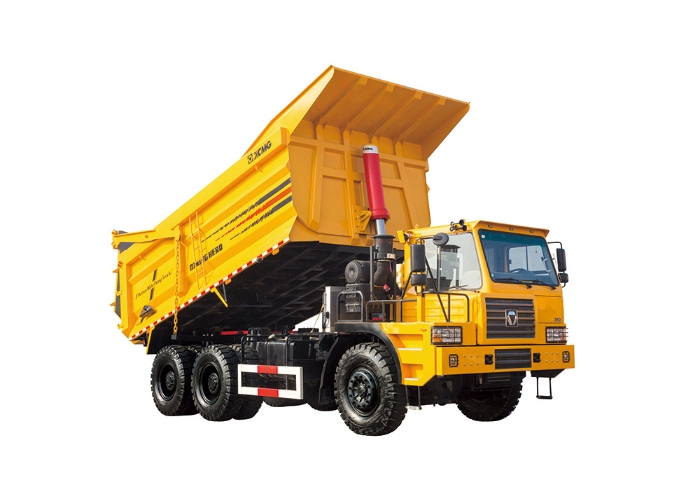

XCMG Global, NXG5650DT
Have one to sell?
ConditionNew
New
We have fully considered the customer demands and finalize the cnguration after thousands of high-strengh industrial assesments in diferent construction environments. Approved by national military field testing and TUV certification, the performance is highly adaptive to all complex working conditions that cannot be coped with by traditional dump truck. Our trucks are widely used for surface mining, water conservancy construction, short-distance transporation, removing mountains for filling seas or other construction projects.
Drive Type: 6×4
Kerb Mass: 25500 kg
GVW: 65000 kg
Max. Speed: 45 km/h
Min. Turning Diameter: 9.4 m
Grade Ability: ≥42%
Fuel Tank: 400 L
Dimension: 8860×3275×3740 mm
Wheelbase: 3800+1560 mm
Min. Clearance: 380 mm
Approach Angle: 30°
Departure Angle: 48°
Cargo size: 5800×3000×1600 mm
Cabin Model: 3.0m Left dislocation cab
Left/Right Driving: LHD
AC: Optional
Person Allowed in: 1
Engine Model: WD12G375E211
Emission Standard: EUR III
Displacement: 11.596 L
Output Power: 276 KW
Max Torque Speed: 1500 N·m
Transmission Model: 9JSD180
PTO: QH50
Front Axle Model: 13T
Rear Axle Model: 25T
Main Reducer Ratio: 11.125/13.51
Rim: 10.00W-24
Tire: 14.00-24NHS
