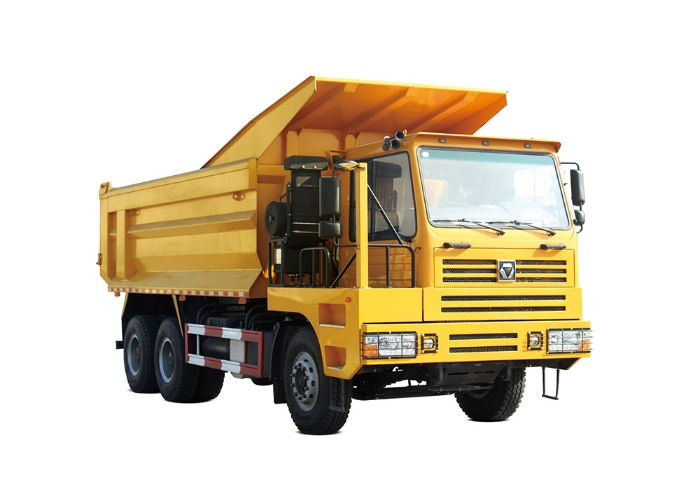

XCMG Global, NXG5470D3T
Have one to sell?
ConditionNew
New
We have fully considered the customer demands and finalize the cnguration after thousands of high-strengh industrial assesments in diferent construction environments. Approved by national military field testing and TUV certification, the performance is highly adaptive to all complex working conditions that cannot be coped with by traditional dump truck. Our trucks are widely used for surface mining, water conservancy construction, short-distance transporation, removing mountains for filling seas or other construction projects.
Drive Type: 6×4
Kerb Mass: 18900 kg
GVW: 47000 kg
Max. Speed: 65 km/h
Min. Turning Diameter: 9.4 m
Grade Ability: ≥33%
Fuel Tank: 300 L
Dimension: 8755×2600×3650 mm
Wheelbase: 4000+1400 mm
Min. Clearance: 258 mm
Approach Angle: 23°
Departure Angle: 36°
Cargo size: 5800×2400×1500 mm
Cabin Model: 2.5m Right dislocation cab
Left/Right Driving: RHD
AC: Optional
Person Allowed in: 1
Engine Model: WP10.340E32
Emission Standard: EUR III
Displacement: 9.726 L
Output Power: 247 KW
Max Torque Speed: 1350 N·m
Transmission Model: 9JSD150A
PTO: QH50
Front Axle Model: 9.5T
Rear Axle Model: 16T
Main Reducer Ratio: 6.733
Rim: 8.5V-20
Tire: 12.00R20
