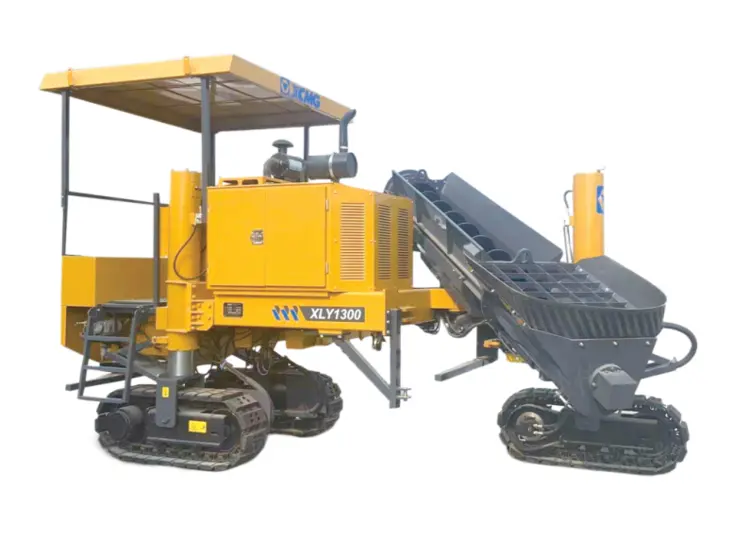

XLY1300 Spreading machines for slip form cement concrete is an independent developed special construction equipment for curbstone. To keep up with the high-speed development of domestic railway and highway construction, it improves substantially the construction speed and quality of cement concrete structure for all types of curbstone under various working conditions.This machine model features high power reserve, full electronic control, full hydraulic drive, three-crawler propelling as well as automatic steering and automatic leveling control system; It is able to complete whole working processes from conveying, tamping, paving, extrusion forming to screeding.
Standard paving width: / mm
Maximum paving width: 2500 mm
Paving thickness: / mm
Paving speed: 0~ 10.5 m/min
Gradeability: ≥20 %
Vibration frequency: / Hz
Engine model: Weichai WP4.1G (optional Yanmar 4TNV98T)
Rating power: 73.5(Optional 63.9) kW
Rating rotate speed: 2300 (Optiona 2500) r/min
Screw rotate speed: / r/min
Overall weight: 9 t
Transportation dimensions: 540×230×230 mm
