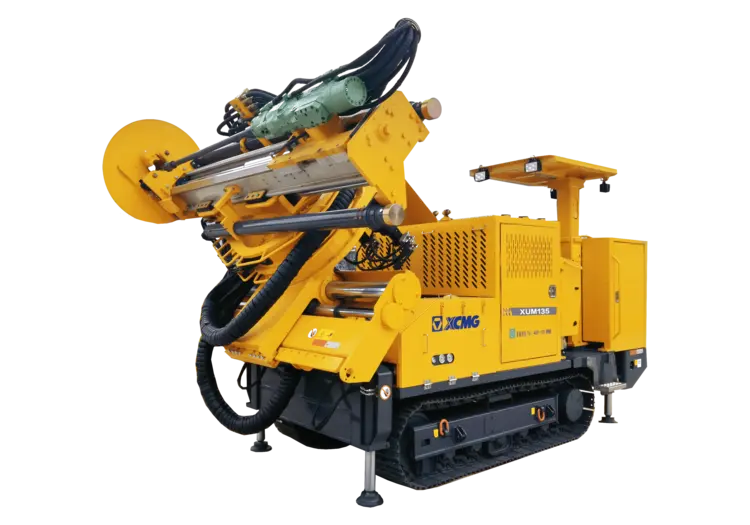

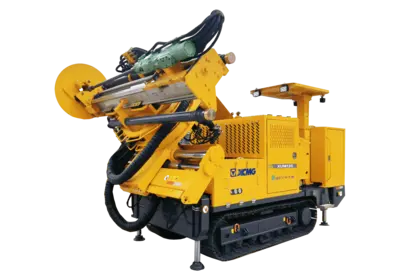

XCMG Global, XUM135
Have one to sell?
ConditionNew
New
Precise Operation: The telescopic drill boom is kept in parallel in all directions, and the positioning is fast and accurate. The square structure provides high strength and good shock absorption performance.Stable Construction: The drilling system has anti-jamming, anti-idle-drilling and automatic withdraw functions, which can effectively improve the drilling efficiency and reduce the loss of drilling tools.Safety Protection: The hood of the whole machine adopts full cover structure to provide safe and reliable protection.Bolting Device: With three-position integrated design, it can achieve fast switching between slit wedge anchor bolt and resin anchor bolt construction. The large-capacity drill steel storage and wire mesh hanging mechanical arm can effectively reduce labor intensity.
Engine Brand: Yuchai /
Engine Model: YCF30100-T480 /
Engine Rated power: 73.5 kW
Engine Emission standard: 欧III/国四 Euro Stage III/China Stage IV /
Rock drill Brand: 蒙特贝/XCMG /
Rock drill Model: HC95SA/XHD20 /
Rock drill Impact power: 21/20 kW
Drill boom Parallel hole range: 1450 mm
Drill boom Turning angle: 1250 °
Feed beam Total length: 5380/5990（选配 Optional） mm
Feed beam Drill steel length: 3700/4310（选配） mm
Feed beam Max. drilling depth: 3400/4000（选配） m
Water system Rated flow: 6 m3/h
Water system Min. water inlet pressure: 2 bar
Air system Flow: 1150 L/min
Air system Pressure: 10 bar
Electrical system Voltage: 380 V
Electrical system Frequency: 50 Hz
Electrical system: 80 m
Chassis Gradeability: 14 °
Chassis Traveling speed: 15 km/h
Dimensions Transport state: 12611×2000×2750 mm
Total operating weight: 22.5 t
