XCMG Global, XGS70K
Have one to sell?
ConditionNew
New

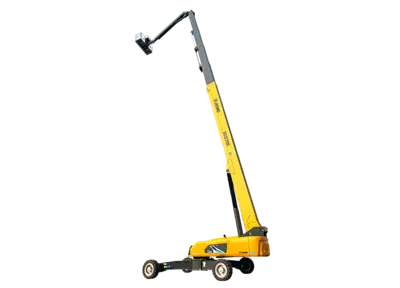

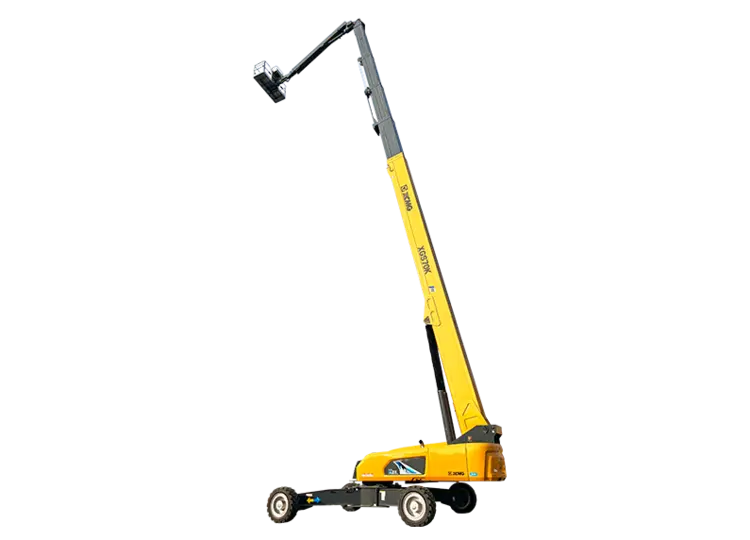

XGS70K mobile elevating working platform is a kind of straight-arm working platform with leading technology, superior performance, strong power and convenient operation. The product mainly consists of working platform, 3-section telescopic boom, 5-section telescopic boom, turntable, frame, hydraulic system, electrical system, power system, and the operating parameters have reached the international advanced level, which fills the blank of the domestic ultra-large mobile elevating working platform equipment, and it is able to satisfy the demand of the large height and large load of the aerial work in the industries such as building construction, steel structure, petrochemical industry, stadium and leasing.
Working Height: 69600 mm
Lift capacity: 230(unlimited)/300(limited)/460(limited) kg
Weight: 35400 kg
Overall dimension-Stowed: 23150x2490x3070 mm
Overall dimension-Transportation: 16000x2490x3070 mm
Dimension of working platform: 2400x900x1150 mm
Wheelbase: 5890（Axle retracted）/5080（Axle extended） mm
Overall Width: 2490mm/5500mm Axle retracted/Axle extended
Fly jib length: 5420(Axle retracted)/12420（Axle extended） mm
Ground clearance: 300 mm
Max.Platform height: 67.6 m
Max.Working range: 32.5 m
Max.Occupants: 2/3
Max.Working slope: X-3°/ Y-3°
Telescopic boom luffing range: 0～+79.5°
Flying jib luffing range: -61°~+70°
Turntable rotation: 360°
Platform rotation: 160°
Drive speed: 4.5km/h stowed
Drive speed: 0.5km/h Up or extended
Min.Turning radius-Axle retracted: 14700mm/17800mm(2-wheel)
7800mm/9700mm(4-wheel) inside/outside
Min.Turning radius-Axle extended: 3000mm/9600mm(2-wheel)
2700mm/6900mm(4-wheel) inside/outside
Turntable tailswing: 3600mm/2100mm Axle retracted/Axle extended
Max.Gradeability: 30% (16.7°)
