XCMG Global, XGS28K(Ⅳ)
Have one to sell?
ConditionNew
New

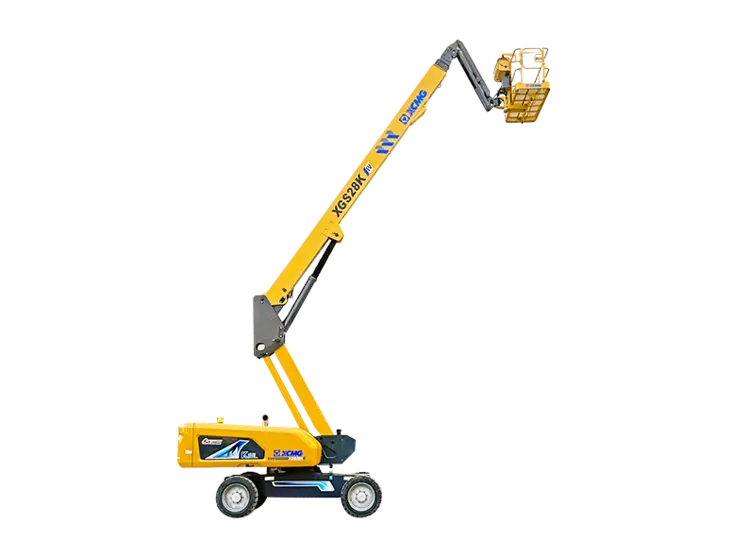

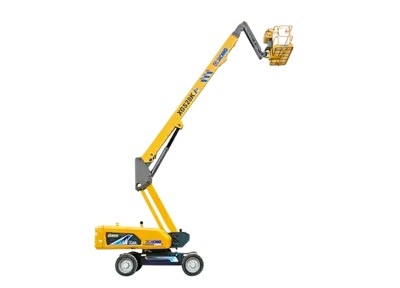

XGS28K(Ⅳ) mobile elevating platform is a kind of straight-arm mobile elevating platform with compact layout, precise design, powerful drive and easy operation. It is easy to operate, safe, reliable, accurate and efficient, and can widely meet the needs of users in various industries such as building construction, steel structure, petrochemical, venues and rental.
Working Height: 28800 mm
Lift capacity: 300kg(unlimited)/460kg(limited) kg
Weight: 15900 kg
Overall dimension-Stowed: 11690x2490x2930 mm
Overall dimension-Transportation: 11460x2490x3000 mm
Dimension of working platform: 2440x910x1150 mm
Wheelbase: 3000 mm
Fly jib length: 1850 mm
Ground clearance: 320 mm
Max.Platform height: 26.8 m
Max.Working range: 22 m
Max.Occupants: 3
Max.Working slope: X-3°/ Y-3°
Telescopic boom luffing range: -4°~ +73°
Flying jib luffing range: -65°~ +70°
Turntable rotation: 360°
Platform rotation: 160°
Drive speed: 6km/h stowed
Drive speed: 0.6km/h Up or extended
Min.Turning radius: 3155mm/6360mm inside/outside
Turntable tailswing: 1890mm stowed
Max.Gradeability: 45% (24°)
