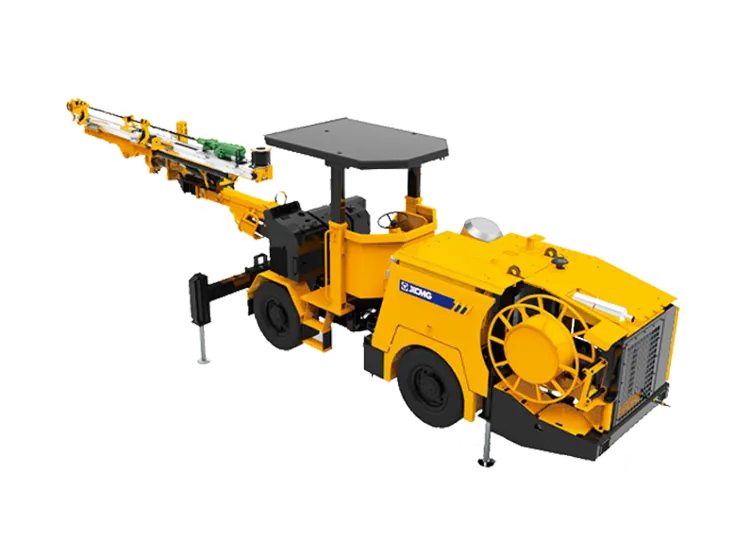

XCMG Global, XUD135
Have one to sell?
ConditionNew
New
High Reliability: The light aluminum alloy beam has high bending, torsion and fatigue resistance. The unique single-layer hose reel can effectively improve the hose life and reduce the maintenance strength.Precise Operation: The telescopic drill boom is kept in parallel in all directions, and the positioning is fast and accurate. The square structure provides high strength and good shock absorption performance.Stable Construction: The drilling system has anti-jamming, anti-idle-drilling and automatic withdraw functions, which can effectively improve the drilling efficiency and reduce the loss of drilling tools.Safety Protection: The hood of the whole machine adopts full cover structure to provide safe and reliable protection.
Engine Brand: Yuchai /
Engine Model: YCF3090-T481 /
Engine Rated power: 66 kW
Engine Emission standard: 国四 China Stage IV /
Rock drill Brand: 安百拓/蒙特贝/XCMG /
Rock drill Model: 18U/HC109/XHD20 /
Rock drill Impact power: 18/18/20 kW
Drill boom Boom extension: 1250 mm
Drill boom Feed extension: 1250 mm
Feed beam Total length: 5437/5986 mm
Feed beam Drill steel length: 3700/4305 mm
Feed beam Single-pass drilling depth: 3400/4000 mm
Water system Rated flow: 5 m3/h
Water system Min. water inlet pressure: 2 bar
Air system Flow: 600/700 L/min
Air system Pressure: 8 bar
Electrical system Voltage: 380 V
Electrical system Frequency: 50 Hz
Electrical system Cable length: 80 m
Chassis Gradeability: 14 °
Chassis Traveling speed: 15/18 km/h
Dimensions Transport state: 11860×2065×2420 mm
Total operating weight: 14 t
