XCMG Global, XGS18K
Have one to sell?
ConditionNew
New

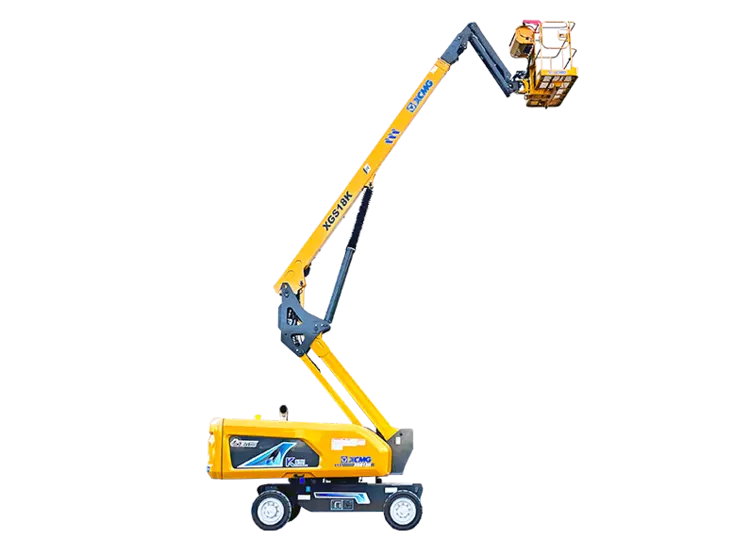

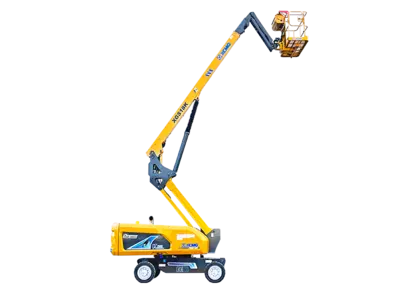

XGS18K mobile elevating platform is a kind of straight-arm mobile elevating platform with compact layout, precise design, powerful drive and easy operation. It is easy to operate, safe, reliable, accurate and efficient, and can widely meet the needs of users in various industries such as building construction, steel structure, petrochemical, venues and rental.
Working Height: 18280 mm
Lift capacity: 300kg(unlimited) kg
Weight: 8000 kg
Overall dimension-Stowed: 9000x2320x2520 mm
Overall dimension-Transportation: 7400x2320x2600 mm
Dimension of working platform: 1830x760x1150 mm
Wheelbase: 2360 mm
Fly jib length: 1420 mm
Ground clearance: 240 mm
Max.Platform height: 16.28 m
Max.Working range: 12.05 m
Max.Occupants: 2
Max.Working slope: X-5°/Y-5°
Telescopic boom luffing range: -8°～+73.5°
Flying jib luffing range: -60°~70°
Turntable rotation: 360°
Platform rotation: 160°
Drive speed: 5.5km/h stowed
Drive speed: 0.6km/h Up or extended
Min.Turning radius: 3200mm/4700mm inside/outside
Turntable tailswing: 1400mm stowed
Max.Gradeability: 45%(24°)
