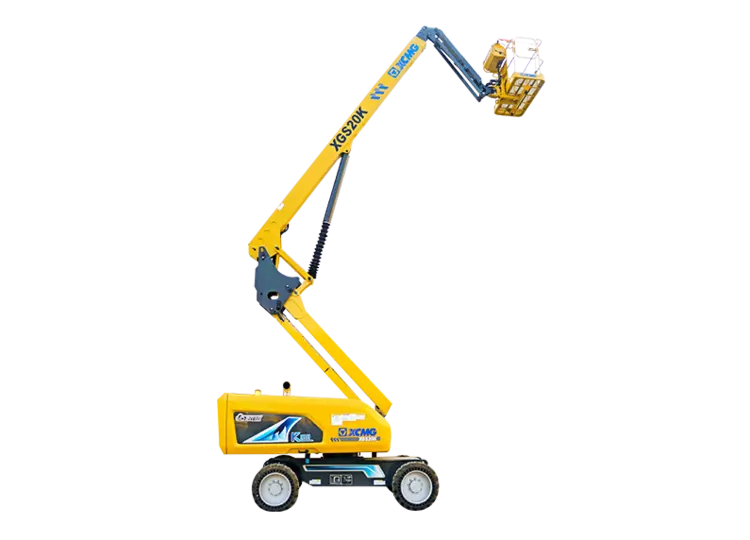

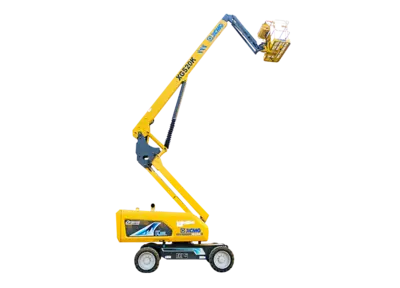

XCMG Global, XGS20K
Have one to sell?
ConditionNew
New
XGS20K mobile elevating platform is a kind of straight-arm mobile elevating platform with compact layout, precise design, powerful drive and easy operation. It is easy to operate, safe, reliable, accurate and efficient, and can widely meet the needs of users in various industries such as building construction, steel structure, petrochemical, venues and rental.
Working Height: 20500 mm
Lift capacity: 300kg(unlimited) kg
Weight: 8500 kg
Overall dimension-Stowed: 9800x2490x2640 mm
Overall dimension-Transportation: 7400x2270x3000 mm
Dimension of working platform: 1830x760x1150 mm
Wheelbase: 2500 mm
Fly jib length: 1850 mm
Ground clearance: 300 mm
Max.Platform height: 18.5 m
Max.Working range: 13.2 m
Max.Occupants: 2
Max.Working slope: X-5°/Y-5°
Telescopic boom luffing range: -5～+76°
Flying jib luffing range: -65～+70°
Turntable rotation: 360°
Platform rotation: 160°
Drive speed: 4.8km/h stowed
Drive speed: 0.6km/h Up or extended
Min.Turning radius: 3100mm/5000mm inside/outside
Turntable tailswing: 1630mm stowed
Max.Gradeability: 45% (24°)
