XCMG Global, XQZ152
Have one to sell?
ConditionNew
New

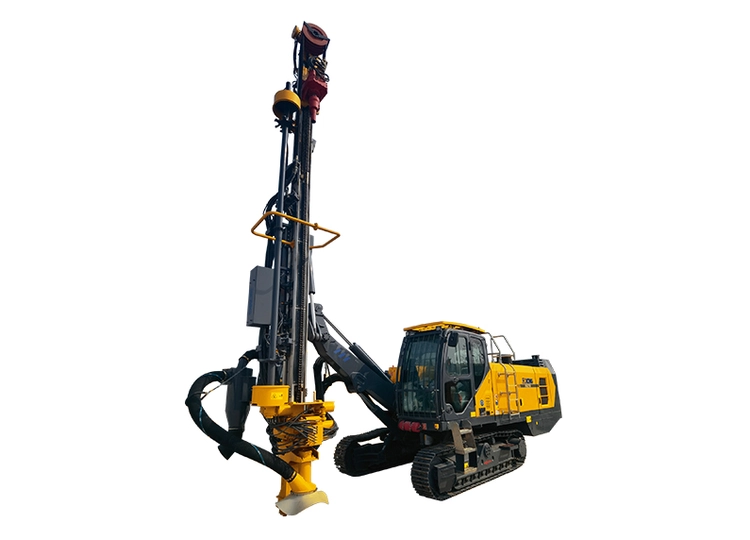

XQZ152 surface down-the-hole drill rig is a medium-sized integrated down-the-hole drilling machine mainly developed for quarries, cement mines, open-pit mines and other mines, which can complete the drilling of main blasting holes and pre-splitting holes. It has the characteristics of large drilling diameter, high drilling efficiency, wide application range, etc.
Drilling diameter: Ф90-Ф152 mm
Max. hole depth: 35 m
Rated power: 264 kW
Engine: Cummins QSL8.9-C360
Emission standard: CN III
Air volume: 19.5 m³/h
Air compressor: Atlas Copco
Rotary torque: 4100 N·m
Rotary speed: 108 rpm
Weight: 22000 kg
Transport dimensions: 11200×2700×3560 mm
